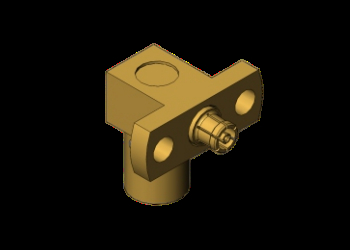

50Ω Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter 40GHz 170V

Large Image : 50Ω Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter 40GHz 170V Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	ISO9001, IS014001
Model Number:	SMP/SSMP-JWFK

Payment & Shipping Terms:

Minimum Order Quantity:	MOQ 50 pieces
Price:	The price depend on the quantity
Packaging Details:	1pcs/plastic bag;100pcs/carton
Delivery Time:	8-12 weeks for new production
Payment Terms:	T/T,L/C,D/P
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	Right Angle SMP Male To SSMP Female Adapter	Model:	SMP/SSMP-JWFK
Frequency Range:	0.3MHz-40GHz	Impedance:	50Ω
Rated Voltage:	170v	DWV:	500V
Insulation Resistance:	≥5000MΩ	Center Conductor:	Copper Alloy, Gold Plated
Outer Conductor:	Copper Alloy, Gold Plated	Samples:	Available，In Stock
Highlight:	50Ω gold plated RF coaxial adapter , SMP to SSMP right angle adapter , 40GHz RF plug to jack adapter

50Ω Gold Plated Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter

High-performance right angle SMP to SMPM (SSMP) male to female adapters designed for precision microwave signal transmission up to 40GHz frequency range. Manufactured with premium materials and strict quality control processes to ensure exceptional durability and reliability in demanding environments.

Product Specifications

Items	Value
Product Name	Right Angle SMP Plug to SMPM Jack Adapter
Model	SMP/SSMP-JWFK
Frequency Range	0.3MHz-40GHz
Impedance	50Ω
Rated Voltage	170v
DWV	500V
Insulation Resistance	≥5000MΩ
Center Conductor	Copper Alloy, Gold Plated
Outer Conductor	Copper Alloy, Gold Plated

Product Outline Dimensions SMP/SSMP-JWFK (Unit: mm)

Please contact us at sales3@xa-elite.com.cn for model availability and additional series options.

Applications

Communication Field: Used in wireless communication base stations and microwave communication systems to connect RF devices like antennas, filters, and amplifiers for high-quality signal transmission.
Radar Systems: Facilitates signal connection between radar components for accurate RF signal transmission and target detection.
Satellite Communication: Supports uplink/downlink transmission in satellite ground stations and equipment for stable communication.
Testing Equipment: Used with network analyzers and spectrum analyzers for precise RF device testing and analysis.

Packaging & Shipping

Each adapter is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.

Note: For other similar adapter models, please check our catalog. While some models are in stock, all can be produced quickly for models listed in our catalog.
