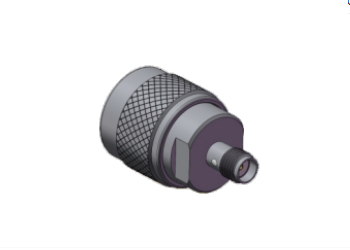

Straight N type Male Plug to SMA Female Jack RF Coaxial Adapter Connector up to 18GHz
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Male To SMA Female RF Coaxial Adapter Connector | Model: | N/SMA-JK |
|---|---|---|---|
| Frequency Range: | 0.3MHz-11GHz | Housing: | Copper Alloy，Nickel Plating |
| Contact: | Copper Alloy, Gold Palting | Insulator: | PTFE |
| Insulation Resistance: | >5000MΩ | DWV: | 500V |
| Impendence: | 50Ω | Temperature: | -55℃～+125℃ |
| In Stock: | >50pcs |
Product Description:
The N-to-SMA RF coaxial adapter connector is a high-frequency widely used connector accessory in the RF and microwave industry, professionally designed to bridge connection gaps between N-type and SMA-type RF devices with mismatched interface specifications. This versatile coaxial adapter solves interface incompatibility issues for various RF equipment, enabling seamless signal transmission between different RF connector standards.
Used to interconnect N-type and SMA interfaces, enabling connection between two different types of RF ports. It only performs interface conversion and does not amplify signals.
Impedance: 50Ω (general for RF applications)
Frequency: Standard version DC~11GHz;
Structure: N connector and SMA connector at two ends, threaded coupling. 4 common types:
- N male to SMA female (N-J /SMA-K, most commonly used)
- N male to SMA male (N-J /SMA-J)
- N female to SMA female (N-K /SMA-K)
- N female to SMA male (N-K /SMA-J)
N Male to SMA Female : N/SMA-JK
Center Contact: Copper Alloy, Gold Plating; Housing: Copper Alloy Nickel Plating Up to 11GHz
The outline demension of N Female to SMA Male: N/SMA-KJ
Center Contact: Copper Alloy, Gold Plating; Housing: Copper Alloy, Nickel Plating Up to 11GHz
N Female to SMA Female : N/SMA-KK Up to 11GHz
Center Contact: Copper Alloy, Gold Plating; Housing: Copper Alloy Nickel Plating Up to 11GHz
N Male to SMA Male : N/SMA-JJ Up to 11GHz
Center Contact: Copper Alloy, Gold Plating; Housing: Copper Alloy Nickel Plating Up to 11GHz
Note: For the above model we also have stainless steel housing model, it can used in extreme and harsh environments, suitable for high-end scenarios requiring high mechanical strength and corrosion resistance
Applications:
Xi'an Elite Electronics is a leading manufacturer of RF Coaxial Adapter Connector , Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite communication, radar, tel communications fields for more than 23 years.
Customization:
Brand: ELT
Custom Service: Custom N to SMA RF Coaxial Adapter Connector are available to meet personalized project requirements.
MOQ: 200 pieces
Pricing: Quotations are provided based on order quantity.
Please feel free to send us your product drawings or full technical specifications. Our in-house engineering team will carry out a thorough technical review accordingly. We may also suggest suitable alternative parts and deliver custom-tailored RF interconnect solutions aligned with your application requirements.
Apart from N-to-SMA RF coaxial adapters, we offer custom manufacturing for a complete range of RF components. Our product lineup includes SMA, SSMA, SMP, SSMP (SMPM), ASMP, N, TNC, TNCA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm and Micro D connectors. We also supply RF loads, antennas, filters, power dividers and couplers to meet varied demands for industrial and commercial RF systems.
Packing & Shipping:
Packaging for N to SMA RF coaxial adapter connector:
1 Piece in small plastic bag
10 Pieces in larger plastic bag
100 Pieces in carton box
All Elite Electronics N to SMA RF Coaxial Adapter Connector feature professional and secure packaging for reliable global transportation. Each unit is individually packed in a sturdy cardboard box to prevent scratches, deformation and damage during transit and delivery. Every package is clearly printed with accurate product names and detailed technical specifications, enabling quick product identification, easy inventory management and convenient customer verification.
For shipping, the N type to SMA RF Coaxial Adapter Connector is placed in caron. We will supply the tracking No. after shipping.
