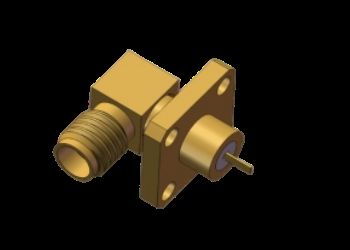

Right Angle SSMA Jack Female RF Coaxial Connector 4 Hole Flange Mount with Microstrip Flat for Telecommunication

Right Angle SSMA Jack Female RF Coaxial Connector 4 Hole Flange Mount with Microstrip Flat for Telecommunication
Right Angle SSMA Jack Female RF Coaxial Connector 4 Hole Flange Mount with Microstrip Flat for Telecommunication
video play

Large Image :  Right Angle SSMA Jack Female RF Coaxial Connector 4 Hole Flange Mount with Microstrip Flat for Telecommunication Get Best Price

Product Details:
Place of Origin: Xi'an, China
Brand Name: ELT
Certification: ISO9001, IS014001
Model Number: SSMA-KWFD18
Payment & Shipping Terms:
Minimum Order Quantity: MOQ 50pcs
Price: The more quantity, the cheaper the price will be
Packaging Details: 1pcs/plastic bag;100pcs/carton
Delivery Time: within 8-12 weeks
Payment Terms: T/T,L/C,D/P
Supply Ability: As requirements
Contact Now
Detailed Product Description
Product Name: SSMA RF Coaxial Connector Style: Right Angle
Model: SSMA-KWFD18 Frequency Range: 0.3MHz-18GHz
Impedance: 50Ω Rated Voltage: 250v
DWV: 750V Insulation Resistance: ≥5000MΩ
Center Conductor: Copper Alloy, Gold Plated Outer Conductor: Copper Alloy, Gold Plated
Mount Method: 4 Hole Flange Mount Microstrip Flat: Flat Size 0.2×φ0.88
Screw: 10-36UNS-2 Insulators: PTFE
Application: Satcom, Telecommunication, Electronics
Highlight:

Microstrip Flat RF Connector

,

SSMA Jack RF Coaxial Connector

,

4 Hole Flange Mount RF Connector

4 Hole Flange Mount Right Angle SSMA / Mini SMA RF Coax Microstrip Flat Connector Up to 18GHz
Product Specifications
Items Value
Product Name RA SSMA Female Microstrip Flat Connector
Model SSMA-KWFD18
Frequency Range 0.3MHz-18GHz
Impedance 50Ω
Rated Voltage 250v
DWV 750V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Mount Method 4 Hole Flange Mount
Insulators PTFE
Samples In Stock, Available
Product Overview
The Right Angle SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
  • Compact size with wide frequency bandwidth
  • Superior mechanical and electrical performance
  • High reliability in demanding applications
  • Threaded connection (10-36UNF-2)
  • Characteristic impedance of 50Ω
  • Frequency operation up to 30GHz
Interface Dimensions
Right Angle SSMA Jack Female RF Coaxial Connector 4 Hole Flange Mount with Microstrip Flat for Telecommunication 0
SSMA Right Angle 4 Hole Flange Mount Connectors with Microstrip Flat Dimensions SSMA-KWFD18  (Unit: mm).
Right Angle SSMA Jack Female RF Coaxial Connector 4 Hole Flange Mount with Microstrip Flat for Telecommunication 1
Other Stainless Steel 4 Hole flange Mount Right Angle SSMA Microstrip Flat Connectors Models: SSMA-KWFD61G

Right Angle SSMA Jack Female RF Coaxial Connector 4 Hole Flange Mount with Microstrip Flat for Telecommunication 2

Applications
Ideal for high-precision microwave signal transmission in:
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Right Angle SSMA Jack Female RF Coaxial Connector 4 Hole Flange Mount with Microstrip Flat for Telecommunication 3
Packaging & Shipping
Packaging: Each 4 hole flange mount right angle SSMA connector is carefully packaged in protective cartons to ensure safe transit.Right Angle SSMA Jack Female RF Coaxial Connector 4 Hole Flange Mount with Microstrip Flat for Telecommunication 4
Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar flange mount right angle connector models, please check our catalog. While some models are in stock, all can be produced quickly to meet customer requirements.
