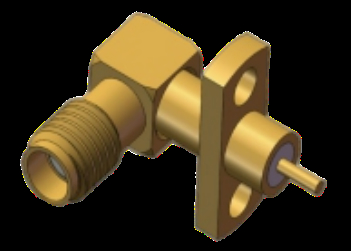

Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2

Large Image : Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2 Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	ISO9001, IS014001
Model Number:	SSMA-KWFD2
Document:	SSMA Flange Mount-Catalog-E...ic.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	In stock
Price:	The more quantity, the cheaper the price will be
Packaging Details:	1pcs/plastic bag;100pcs/carton
Delivery Time:	5-10 working days for stocked quantity
Payment Terms:	T/T,L/C,D/P
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	SSMA Female Microstrip Connector	Model:	SSMA-KWFD2
Frequency Range:	0.3MHz-18GHz	Impedance:	50Ω
Rated Voltage:	250v	DWV:	750V
Insulation Resistance:	≥5000MΩ	Center Conductor:	Copper Alloy, Gold Plated
Outer Conductor:	Copper Alloy, Gold Plated	Mount Method:	4 Hole Flange Mount
Screw:	10-36UNS-2	Insulators:	PTFE
Samples:	In Stock, Available
Highlight:	SSMA RF Coaxial Connector , SSMA Jack RF Coaxial Connector , 2 Hole Flange SSMA Jack

2 Hole Flange Mount Right Angle SSMA / Mini SMA RF Coax Microstrip Connector Up to 18GHz

Product Specifications

Items	Value
Product Name	RA SSMA Female Microstrip Connector
Model	SSMA-KWFD2
Frequency Range	0.3MHz-18GHz
Impedance	50Ω
Rated Voltage	250v
DWV	750V
Insulation Resistance	≥5000MΩ
Center Conductor	Copper Alloy, Gold Plated
Outer Conductor	Copper Alloy, Gold Plated
Mount Method	2 Hole Flange Mount
Insulators	PTFE
Samples	In Stock, Available

Product Overview

The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:

Compact size with wide frequency bandwidth
Superior mechanical and electrical performance
High reliability in demanding applications
Threaded connection (10-36UNF-2)
Characteristic impedance of 50Ω
Frequency operation up to 30GHz

Interface Dimensions

SSMA Right Angle 2 Hole Flange Mount Microstrip Connectors Dimensions

Outline dimensions for the SSMA-KWFD2 model (Unit: mm).

Other Right Angle SSMA Microstrip Connectors Models:

Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2 2

Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2 3

Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2 4

Applications

Ideal for high-precision microwave signal transmission in:

Microwave communication systems
Measurement equipment
Aerospace applications
Radar systems
Electronics fields

Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.

Packaging & Shipping

Packaging: Each ssma right angle connector is carefully packaged in protective cartons to ensure safe transit. Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2 6

Shipping: We use reliable courier services with tracking numbers provided for all shipments.

Note: For other similar flange mount right angle connector models, please check our catalog. While some models are in stock, all can be produced quickly to meet customer requirements.
