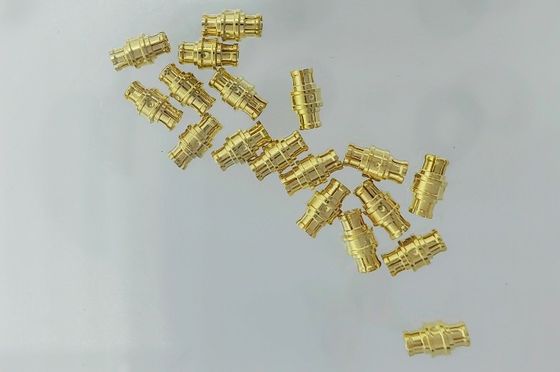

Convenient Copper Alloy Gold Plated CSMP/SMPS Female To Female Jack To Jack Adapter For Board-to-Board Interconnection
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Straight CSMP RF Coaxial Adapter Connectors | Frequency Range: | 0.04GHz~40GHz |
|---|---|---|---|
| Center Conductor: | Copper Alloy, Gold Plated | Outer Conductor: | Copper Alloy, Gold Plated |
| Impedance: | 50 Ohm | DWV: | 250V |
| Insulation Resistance: | 2000MΩ | Insulation Dielectric: | PLF |
| Lifetime: | 500Cycles | Other Name: | SMPS Adapter |
| Highlight: | copper alloy gold plated CSMP adapter,female to female jack adapter,board-to-board interconnection coaxial adapter |
||
Product Description:
CSMP RF coaxial adapter connectors are ultra-miniature push-on RF coaxial connectors characterized by the small siz (smaller than SSMP), light weight, and wide operating frequency range. They are widely used in pairs for board to board connections, suitable for modular dense mounting. The CSMP plug has two interface forms: full detent and smooth bore.
CSMP CSMP RF coaxial adapter connectors Interface Dimension:
Features:
- Product Name: CSMP RF coaxial adapter connectors
- Housing Material: Copper Alloy with Gold Plated
- Contact Material: Copper Alloy with Gold Plated
- Impedance: 50 Ohm
- Frequency: up to 40 GHz
Technical Parameters:
| Impedance | 50 Ohm |
| Gender | Female to Female |
| Feature | Straight |
| Frequency Range | 0.04GHz~40GHz |
| Contact Material | Copper Alloy, Gold Plated |
| Adapter Type | In Series |
| Body Material | Copper Alloy, Gold Plated |
| Product | CSMP In Series Adapter |
Outline Dimension of CSMP Female to Female CSMP RF coaxial adapter connectors CSMP-KK55 :
The Board to Board Solution as following for reference:
Applications:
They are widely used in pairs for board to board interconnections, suitable for modular dense mounting and narrow space.
It can used in aerospace, aviation, navigation, satcom, radar, communication and electronic industry. Due to the small outline dimension, it is hot selling these years.
Customization:
We can supply the customizion according the drawing or we can supply the interconnect solution base your requirement after the evaluation by our engineers.
Packing and Shipping:
Packaging:

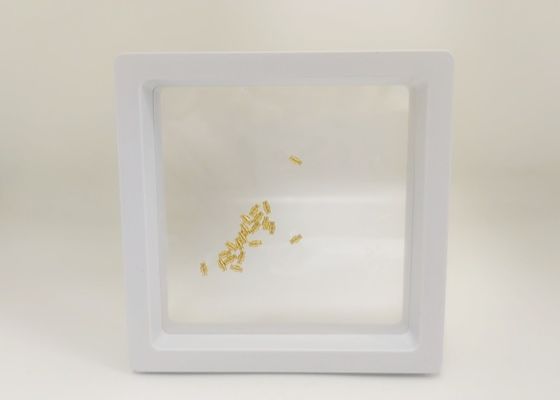

The CSMP RF coaxial adapter connectors will be carefully packaged in a platic bottle, outer package is the sturdy cardboard box to ensure safe transportation. Inside the platic bottle, the CSMP RF coaxial adapter connectors will be protected with cushioning material to prevent any damage during shipping.
Shipping:
Once your order is processed, the CSMP RF coaxial adapter connectors will be shipped using a reliable courier service. You will receive a tracking number to monitor the delivery status of your package. We strive to deliver your order in a timely manner and ensure it reaches you in perfect condition.
