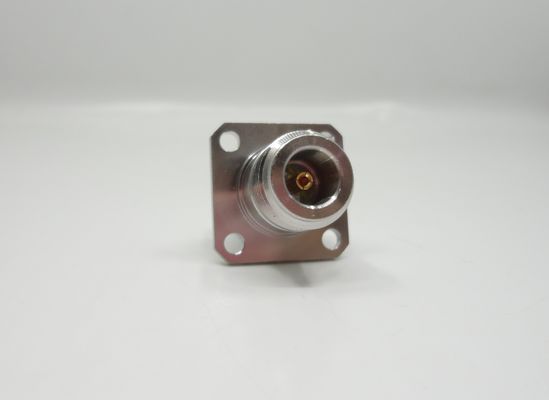

Stainless Steel N Type Female to Female 4 Hole Flange Adapter 11GHz
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Stainless Steel | Gender: | Female To Female |
|---|---|---|---|
| Product Name: | N Type Female To Female Adapter | Keywords: | 4 Hole Flange Panel Connectors |
| Item: | RF Coaxial Adapter | Application: | RF |
| Surface Plating: | Passivated | ||
| Highlight: | Stainless Steel N Type Adapters,11GHz Coaxial Adapters,4 Hole Coaxial Adapters |
||

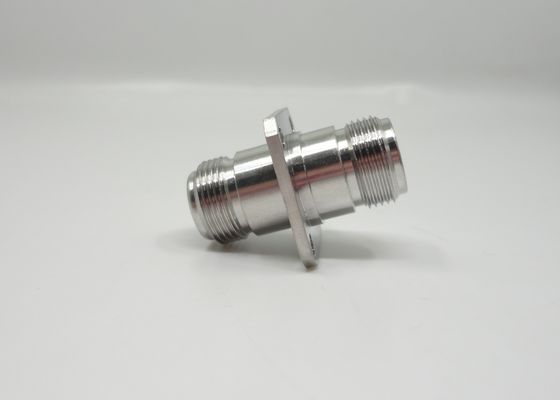

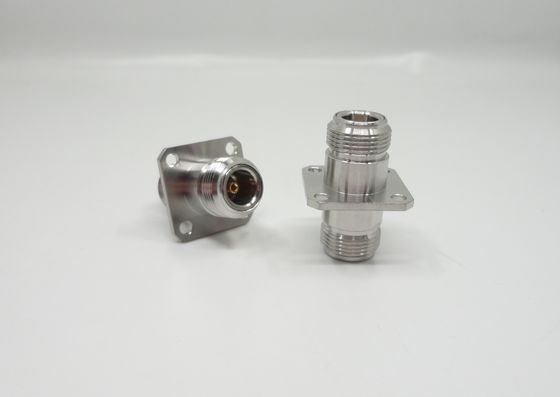

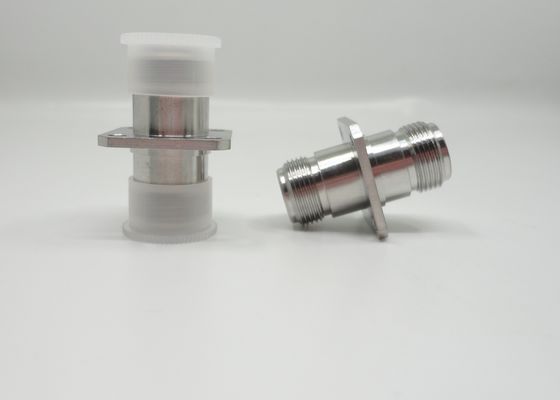

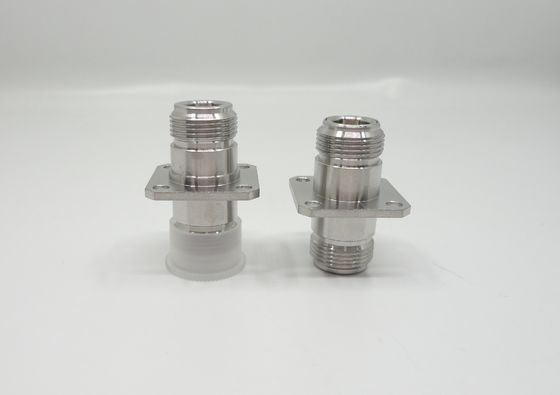

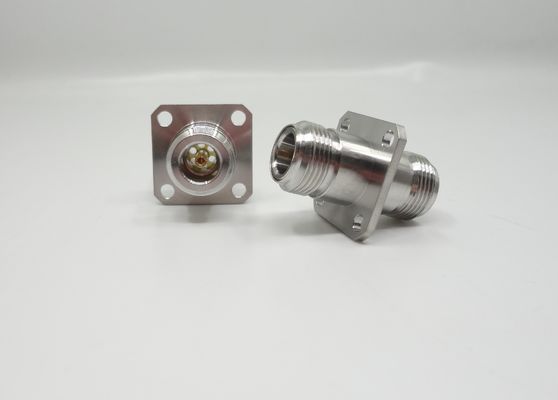

Stainless Steel N Type Straight 4 Hole Flange Mount Female To Female Coaxial Adapters Up To 11GHz
Product Introduction
The N-type connector is a threaded medium-power connector known for its high reliability, strong vibration resistance, and excellent mechanical and electrical performance. It is suitable for connecting RF cables or microstrip lines in RF circuits of microwave equipment and digital communication systems.
This connector features a wide frequency band, high performance, high reliability, and long lifespan. It is widely used in radio equipment and instruments under vibration and harsh environmental conditions, as well as in ground transmission systems to connect RF coaxial cables. The threaded structure makes it particularly suitable for applications requiring high protection levels or where other connectors cannot meet environmental factors such as temperature, pressure, or vibration.
Specifications
| Product Model | N-KFKG |
|---|---|
| Technical | Materials & Finish |
| Impedance: 50Ω | Center Conductor: Copper Alloy, Gold Plating |
| DWV: 1500V | Outer Conductor: Passivated Stainless Steel |
| Insulation Resistance: >5000MΩ | Insulation Dielectric: PEI |
| Temperature: Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | |
| Frequency Range: 0.3MHz~11GHz | |
Outline Drawing
Key Features
- High Versatility: Suitable for various RF and microwave devices and systems
- Wide Frequency Range: Supports signal frequencies from 0 to 11 GHz (enhanced types up to 18 GHz)
- Ease of Use: Plug-in connection method for easy connection and disconnection, reusable
- High Reliability: Excellent robustness and intermodulation performance
- High Mechanical Strength: Withstands high power, high voltage, and high-frequency environments
- Strong Anti-Aging Performance: Maintains stable performance in harsh conditions
- Excellent Contact and Signal Transmission: Low contact resistance ensures superior signal quality
- High Weather Resistance: Medium-sized screw-locking system provides excellent weather resistance
Applications
- Instrumentation
- Automotive
- Satcom
- Computer/LANs
- Telecommunications
- Avionics, radars
- Telecommunication systems
- Navigation systems
- Research centres
- Satellite communications
Packaging
