TNC Female Right Angle 4-Hole Flange RF Connector for Secure Mounting

Large Image : TNC Female Right Angle 4-Hole Flange RF Connector for Secure Mounting Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	TNC-KWFD10

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	TNC Conector	Plating:	Nickel Plated
Impedance:	50Ω	Material:	Brass
Contact Material:	Brass, BeCu	Durability:	500 Cycles
Design Standard::	IEC 60169-17	Type:	4-Hole Flange Mount
Highlight:	TNC Female RF Connector , Secure Mounting RF Connector , 4-Hole Flange RF Connector

TNC Female Right Angle 4-Hole Flange RF Connector for Secure Mounting

The TNC series represents a threaded adaptation of the BNC connector, incorporating screw threads for reliable mating. Characterized by their miniature size and threaded, waterproof design, TNC RF connectors maintain a consistent 50-ohm impedance across a frequency range extending from DC to 11 GHz. Two variants exist: standard and reverse polarity. Despite being constructed from die-cast and molded components, which may not match the performance of industrial or premium-grade alternatives, these cost-effective connectors excel in diverse commercial settings. Commonly employed in antenna connections, TNC connectors find extensive use in avionics, defense, communications, and various industrial sectors. Additionally, reverse polarity and 75-ohm versions of the TNC connector are also available.

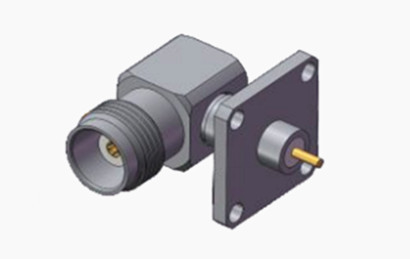

TNC Female Right Angle 4-Hole Flange RF Connector for Secure Mounting 0

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~4GHz
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

Detailed Drawing

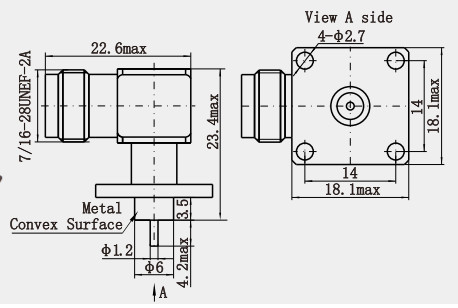

TNC Female Right Angle 4-Hole Flange RF Connector for Secure Mounting 1

Features:

1. Right-angle design: suitable for space-limited scenarios, convenient for installation and wiring.
2. Microstrip Line Interface: Suitable for microstrip circuits, providing good high frequency signal transmission performance.
3. 4-hole Flange: Provides reliable mechanical fixing to ensure the stability of the connection.
4. Durability: High-quality materials and structural design to adapt to frequent connections and harsh environments.
5. Electromagnetic Compatibility: Good shielding performance to reduce signal interference and loss.
6.Wide Compatibility: Compatible with a wide range of devices and brands, adapting to different application scenarios.

Application:

TNC connectors are widely used in wireless communications, test and measurement, industrial automation, electronics, aerospace and medical devices. All of these areas require reliable RF connections to ensure stable and efficient signal transmission. Then, I consider the specific applications in each field. For example, wireless communications equipment such as base stations and routers; network analyzers in test and measurement; wireless sensors in industrial automation; communications equipment in electronics; satellite communications in aerospace; and MRI machines in medical equipment.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.

Tag:

Contact Person: Elite

Tel: +8613609167652

Send your inquiry directly to us

More RF Coaxial Adapter Connector
