TNC Female 4-hole Flange RF Coaxial Connector with Microstrip

Large Image : TNC Female 4-hole Flange RF Coaxial Connector with Microstrip Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	TNC-KFD139

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	1,000,000pcs per month

Contact Now

Detailed Product Description

Product Name:	TNC RF Connector	Plating:	Nickel Plated
Impedance:	50Ω	Durability:	500 Cycles
Contact Material:	Brass, BeCu	Design Standard:	IEC 60169-17
Material:	Nickel Plated	Type:	Straight
Highlight:	4-hole Flange RF Coaxial Connector , TNC Female RF Coaxial Connector , Microstrip RF Coaxial Connector

TNC Female 4-hole Flange RF Coaxial Connector with Microstrip

The TNC series product is fundamentally a threaded adaptation of the BNC connector, recognized by its screw threads for secure mating. These miniature, threaded, and waterproof RF connectors ensure a stable 50-ohm impedance and function within the DC to 11 GHz frequency range. The two main types of TNC connectors are standard and reverse polarity. Primarily made from die-cast and molded materials, these affordable connectors are ideal for various commercial uses. Despite their performance not reaching industrial or high-performance levels, they are extensively used in avionics, communications, and numerous general industrial fields. Furthermore, reverse polarity and 75-ohm versions of the TNC connector are also accessible.

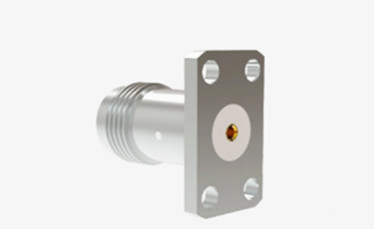

TNC Female 4-hole Flange RF Coaxial Connector with Microstrip 0

Specification:
Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Frequency Range	DC~4GHz
Impedance	50Ω
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

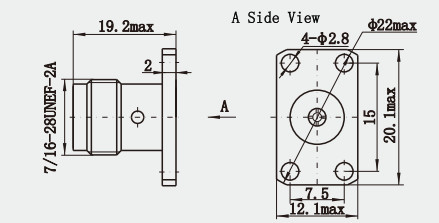

TNC Female 4-hole Flange RF Coaxial Connector with Microstrip 1

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Cable Retention	100N min
Contact Retention	10N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

Environmental Specification:

Operating Temperature	-30 to +70 Deg C
IP Rating ( Mated )	IP64

Features:

Reliable mechanical performance

1. Solid connection: the use of threaded connection, compared with some other connectors have a higher connection reliability, can withstand a certain degree of tension and torque, not easy to loosen or fall off, to ensure that in a variety of complex use of the environment can maintain a stable connection.
2. Resistant to vibration and shock: good anti-vibration performance, suitable for aircraft, aerospace, radar detection and other vibration is more intense occasions, can be in the harsh mechanical environment of normal work, effectively reduce the vibration and shock caused by the failure of the connection or signal interruption and other issues.

Application:
1. Cable TV system: In cable TV system, TNC adapters can be used to connect cable TV front-end equipment, distribution network and user terminals to realize the transmission and distribution of TV signals to meet the viewing needs of users.
2. Broadcasting tower: In broadcasting tower, TNC adapters are used to connect transmitters, antennas and feeder systems to transmit TV and radio signals to provide high-quality program content for viewers and listeners.

NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
