Brass TNC Right Angle 4-hole Flange Female RF Coaxial Connector For CXN3506/MF108A

Large Image : Brass TNC Right Angle 4-hole Flange Female RF Coaxial Connector For CXN3506/MF108A Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	TNC-KWF506

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	TNC Cable Connector	Plating:	Nickel Plated
Impedance:	50Ω	Durability:	500 Cycles
Contact Material:	Brass, BeCu	Material:	Brass
Design Standard::	IEC 60169-17	Type:	Straight
Highlight:	4-hole Flange RF Coaxial Connector , Brass RF Coaxial Connector , CXN3506 RF Coaxial Connector

TNC Right Angle 4-hole Flange Female RF Coaxial Connector for CXN3506/MF108A

The TNC series product is a threaded variant of the BNC connector, distinguished by its screw threads for mating. These miniature, threaded, and waterproof RF connectors maintain a consistent 50-ohm impedance and are designed to operate within the DC-11 GHz frequency range. There are two main types of TNC connectors: standard and reverse polarity. Constructed primarily from die-cast and molded components, these cost-effective connectors are well-suited for a broad spectrum of commercial applications, although their performance may not match that of industrial or high-performance grade products. TNC connectors are widely used for antenna connections and have many applications in radar, wireless, communications, and general industrial markets. Additionally, reverse polarity and 75-ohm versions of the TNC connector are also available.

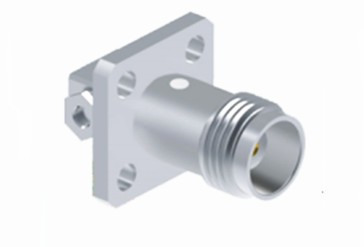

Brass TNC Right Angle 4-hole Flange Female RF Coaxial Connector For CXN3506/MF108A 0

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~4GHz
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

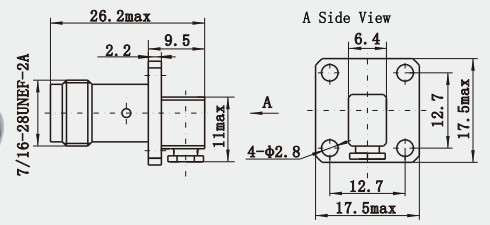

Detailed Drawing

Brass TNC Right Angle 4-hole Flange Female RF Coaxial Connector For CXN3506/MF108A 1

Features:

1. High mechanical strength and durability: usually made of brass or stainless steel, the surface treatment may include nickel-plated or gold-plated, can withstand hundreds of times of plugging and unplugging operations without easy damage, but also can withstand a certain degree of tensile force and pressure, suitable for a variety of harsh environments.
2. Good waterproof performance: the connector part adopts a sealed structure with good waterproof performance, suitable for outdoor and other humid environments.

Application:

1. Satellite navigation measurement antenna: In the scenarios of geodetic surveying and mapping, oceanographic surveying, waterway surveying, dredging surveying, seismic monitoring, bridge deformation monitoring, landslide monitoring, and automatic operation of wharf, etc., TNC connector connects the satellite navigation measurement antenna with the external equipment, transmits the wireless signals and supplies power.
2. Aerospace field: Aviation control: In the aviation control system, TNC female connectors are used for the connection of related radio equipment to ensure the accuracy and reliability of aviation communication.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
