Nickel Plated N Male Flange Mounted RF Coaxial Connector With Microstrip
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/ Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Model: | N-J200 | Gender: | Male |
| Insulation Resistance: | ≥500MΩ | VSWR: | ≤1.3 |
| Highlight: | Flange Mounted RF Coaxial Connector,Nickel Plated RF Coaxial Connector,Microstrip RF Coaxial Connector |
||

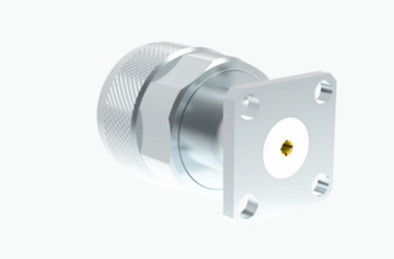

Nickel Plated N Male Flange Mounted RF Coaxial Connector with Microstrip
N type connectors belong to the category of threaded coupling coaxial connectors, which possess remarkable anti-vibration capability and electrical characteristics. Their typical frequency range is up to 11 GHz, while our products can reach frequencies as high as 18 GHz. These connectors are versatile and can be used with different types of RF cables. They are widely adopted in various fields such as aviation, aerospace, radar, microwave and digital communications, test and measurement instruments, and more.
We provide customization services for N type connectors and adapters to meet the specific needs of our customers. Whether you require straight or right-angle connectors, flange mount or bulkhead mount, we can tailor our products to your exact specifications.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

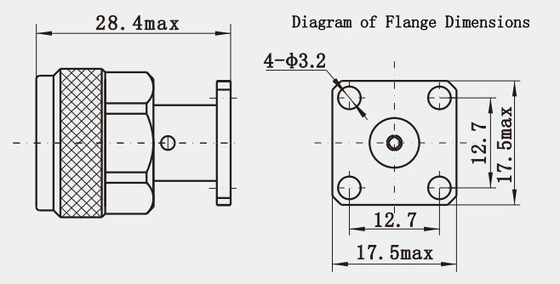

Detailed Drawing
Features:
1. High shielding: The housing is usually made of metal material with good electromagnetic shielding performance, which can effectively prevent the influence of external electromagnetic interference on signal transmission.
2. High Power Resistance: High power handling capability, able to withstand high power RF signals, suitable for transmitters, amplifiers and other applications that need to handle high power signals.
3. Strong durability: After special treatment and testing, it can work stably in harsh environmental conditions, such as high temperature, low temperature, humidity and other environments, and has a long service life.
Applications:
1. Industrial automation control system: In some industrial automation systems that require remote control and monitoring, such as factory production line automation control system, robot control system, etc., N-type connector can be used to connect the controller, sensor, actuator, and other equipment between the RF signal transmission, to achieve remote control and data acquisition.
2. Medical equipment: In medical imaging equipment, RF therapy equipment and other medical equipment, N-type connectors can be used to connect the RF components of the equipment, such as RF probes, transmitting coils, receiving coils, etc., to ensure the stable transmission of RF signals and the normal operation of the equipment.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
