| Plating: | Gold Plated/Passivation | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | ISO-9001-2015 | Dielectric: | PEI/PLF |
| Type: | RF Connector | Gender: | Male |
| Durability: | 500 Cycles | ||
| High Light: | MSSM RF Connector,CXN3506/MF108A RF Connector,Male Right Angle RF Connector |
||
MSSM Male Right Angle Stainless Steel RF Connector for CXN3506/MF108A Cable
The MSSM range of products comprises high-performance millimeter-wave connectors capable of operating at frequencies up to 40GHz. They utilize air interface threaded connections and offer interchangeability with the SSMA series connectors. The MSSM series connectors are distinguished by their compact size, low weight, high operational frequency, and dependable connectivity. These connectors are extensively employed in high-frequency microwave measurements and millimeter-wave applications.
Specifiacation:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Dielectrics Voltage-resistance | 500VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.07+0.007f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics | |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF/PEI |
| Temperature Range | -55 ~ +125℃ |
Feature:
1. Versatility
Integrated Internal Functions: In addition to basic connectivity, MSSM connectors can integrate internal functions such as filtering, phase adjustment, and mixing to meet the needs of multifunctional devices.
2. Market and Development Trends
Towards Miniaturization and Higher Frequencies: As electronic devices evolve towards smaller sizes and higher frequencies, the market demand for MSSM connectors continues to grow, driving the introduction of more miniature, high-performance connectors.
Meeting High Reliability Needs: In harsh application environments, the high reliability of MSSM connectors is an important feature, meeting the demands for high-performance connectors in military and aviation sectors.

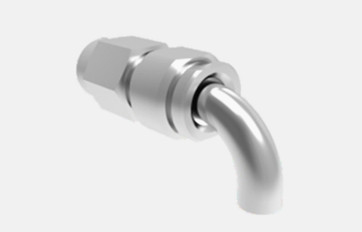

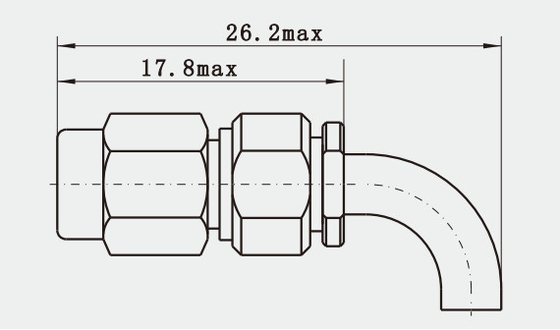

Outline Drawing(mm) and Picture of MSSM Male Right Angle Stainless Steel RF Connector for CXN3506/MF108A Cable
Application:
Public Infrastructure Applications
* Traffic Management Systems: In traffic light control and highway monitoring systems, MSSM RF coaxial connectors link sensors and control centers to ensure real-time information transfer.
* Surveillance Systems: In urban monitoring and security systems, MSSM connectors are used to transmit video signals, helping to maintain public safety.
