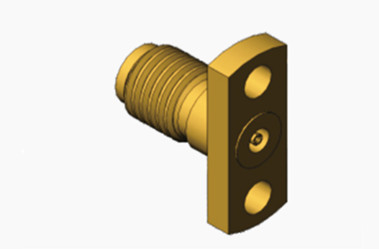

Brass MSSM Female 2-hole Flange RF Coaxial Connector with Micro-strip
The MSSM product range includes high-performance millimeter-wave connectors capable of handling frequencies up to 40GHz. These connectors feature air interface threaded connections and are compatible with the SSMA series. The MSSM series is distinguished by its compact size, low weight, high operational frequency, and reliable connectivity. These features make the MSSM series connectors highly suitable for high-frequency microwave measurements and millimeter-wave applications.
Specifiacation:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Dielectrics Voltage-resistance | 500VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.07+0.007f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics | |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF/PEI |
| Temperature Range | -55 ~ +125℃ |
Feature:
- Inner conductor: usually made of gold-plated brass or gold-plated beryllium copper, the main role is to connect the interface between the cable and the device to achieve information interconnection.
- Outer conductor: generally cylindrical socket, play a role in protecting and fixing the connector, to prevent the external link on the connector.
- Medium: common media PTFE, PEI and air media, air media constant is low, so that the connector has a higher cut-off frequency.

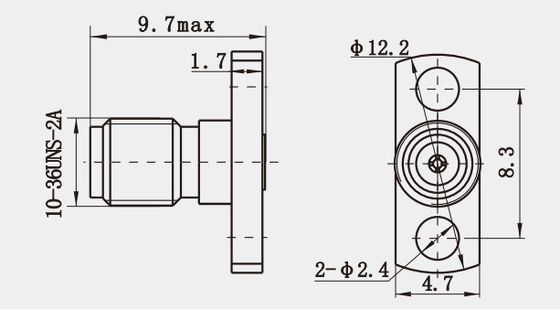

Outline Drawing(mm) and Picture of Stainless Steel Passivation MSSM Male RF Connector for MF30A Cable
Application:
- Semiconductor industry: In the semiconductor manufacturing process, RF coaxial connectors are used for chip testing and packaging and other links.
- Quantum computing: as part of high-speed and optical modules, RF coaxial connectors also play an important role in the field of quantum computing.
- High-speed communication system: With the increase of miniaturization, high frequency, high precision and high reliability requirements of the whole equipment, RF coaxial connectors are more and more widely used in high-speed communication system.
