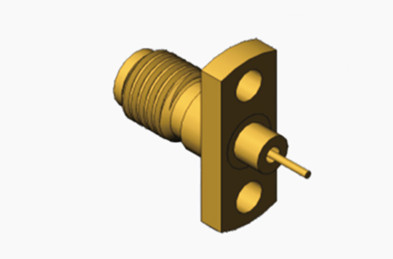

MSSM Female 2-hole Flange RF Coaxial Connector Long Micro-strip

Large Image : MSSM Female 2-hole Flange RF Coaxial Connector Long Micro-strip Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	MSSM-KFD

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, L/C
Supply Ability:	1,000,000pcs per week

Contact Now

Detailed Product Description

Plating:	Gold Plated/Passivation	Impedance:	50Ω
Certificate:	ISO-9001-2015	Dielectric:	PEI/PLF
Type:	RF Connector	Gender:	Male
Durability:	500 Cycles
Highlight:	2-hole Flange RF Coaxial Connector , MSSM Female Flange RF Coaxial Connector

MSSM Female 2-hole Flange RF Coaxial with Long Micro-strip Connector

The MSSM product line includes high-performance millimeter-wave connectors designed for frequencies up to 40GHz. They feature air interface threaded connections and are interchangeable with the SSMA series connectors. The MSSM series connectors are characterized by their compact size, low weight, high operational frequency, and reliable connectivity. These connectors are widely used in high-frequency microwave measurements and millimeter-wave applications.

Specifiacation:

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Dielectrics Voltage-resistance	500VRMS*
Insulation Resistance	≥5000MΩ
VSWR	≤1.07+0.007f
Quality Grade	High Performance Grade
Material & Mechanical Characteristics
Center conductor	Beryllium Bronze Gold plated
Outer conductor	Beryllium Bronze Gold plated; Stainless steel Passivation
Insulation Dielectric	PLF/PEI
Temperature Range	-55 ~ +125℃

Feature:

Structural composition:

Inner conductor: usually made of gold-plated brass or gold-plated beryllium copper, the main role is to connect the interface between the cable and the device to achieve information interconnection.
Outer conductor: generally cylindrical socket, play a role in protecting and fixing the connector, to prevent the external link on the connector.
Medium: common media PTFE, PEI and air media, air media constant is low, so that the connector has a higher cut-off frequency.

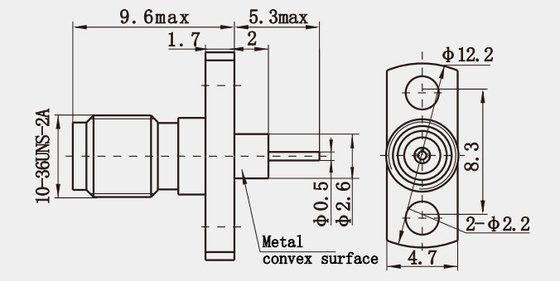

Outline Drawing(mm) and Picture of MSSM Female 2-hole Flange RF Coaxial with Long Micro-strip Connector

MSSM Female 2-hole Flange RF Coaxial Connector Long Micro-strip 0

Application:

Communication equipment: RF coaxial connectors play the role of bridge connection in the RF signal connection between base station antenna and main feed cable, as well as between PCB boards, and between devices and devices.
Commercial aerospace: Due to its good broadband transmission characteristics and a variety of convenient connection methods, RF coaxial connectors are also widely used in commercial aerospace.
Instrumentation: In the field of test and measurement, RF coaxial connectors are used to connect various RF test equipment, such as audio and signal generators, oscilloscopes and amplifiers.
