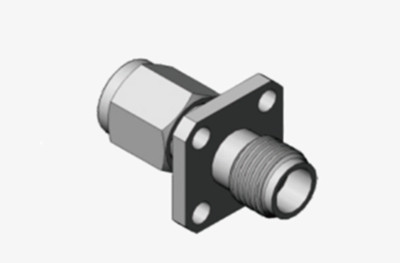

Male to Female 2.4mm RF Adapter with Passivated Plating and Stainless Steel Material

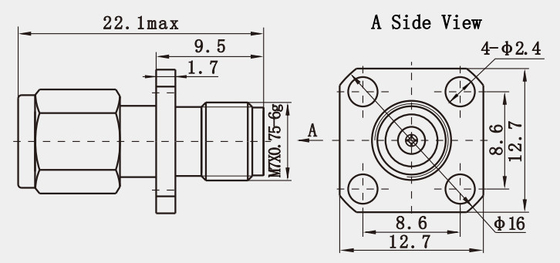

Detailed Drawing (mm):


Features:

*​Outer Conductor Material: Typically made from stainless steel, which is passivated to enhance its corrosion resistance and durability.
*Inner Conductor Material: The inner conductor is often made of brass with a gold plating that provides excellent electrical conductivity and corrosion resistance.
*Dielectric Material: The dielectric generally uses high-performance plastic materials such as PEI (Polyetherimide), which offers good insulation and stable operation at high frequencies.
*Design Standards: These connectors are designed to be incompatible with other sizes of connectors like SMA, 3.5mm, etc., and they have higher operating frequencies, up to 50GHz.


Advantages:

Application:

* Wireless communication is one of the main application areas for 2.4mm stainless steel RF connectors. Within this field, connectors are widely used in base station construction, network equipment, mobile communications, and other sub-sectors. Because they can support frequencies up to 50GHz, they are suitable for various high-frequency communication systems such as satellite communications, point-to-point radio, and 5G communication infrastructure.
*The use of 2.4mm stainless steel RF connectors in instrumentation is also very important. In high-precision RF measurement equipment, such as network analyzers and spectrum analyzers, these connectors provide very low insertion loss and voltage standing wave ratio, ensuring accuracy and repeatability of measurements. Moreover, their design durability and environmental stability make them suitable for use in calibration and standards to maintain optimal performance of the instrument.


Our Main Products


NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
