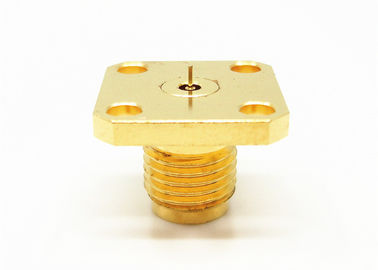

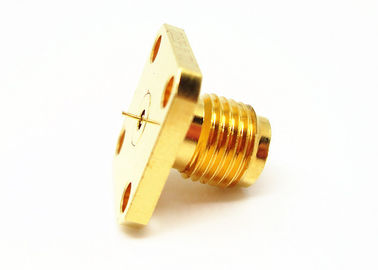

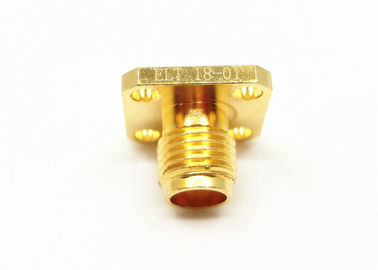

Gold Plated 2.4mm Female Straight 4 Holes Flange Mount Millimeter Wave Connector
The 2.4mm type products are a kind of high performance millimeter wave (MMW)connectors, the frequency is 50GHz, use air interface threaded connect with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.
The high precision 50Ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 50GHz |
| Voltage Rating | 150 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 500 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05+0.005f |
| Contact Resistance | Center Conductor ≤ 2 mΩ |
| Outer Conductor ≤ 3 mΩ | |
| Insulation Resistance | ≥ 5000MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing |
Brass, Gold Plated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
Features:
•2.4mm connector is one kind of precision microwave connectors. The frequency can be up to 50GHz.
•Stainless steel construction
•Superior electrical performance to 50GHz
•Connectors in End Launch and Flange options
•Adapters to 2.4mm, SMP, 2.92mm, SMA.
•Great for applications that require high frequency transmission
•Connector mating interface per MIL-STD-348
•Superior electrical performance up to 50GHz
•Excellent reliability where extreme shock & vibration conditions are experienced
•Quick connect cable plugs and adapter
Application:
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
