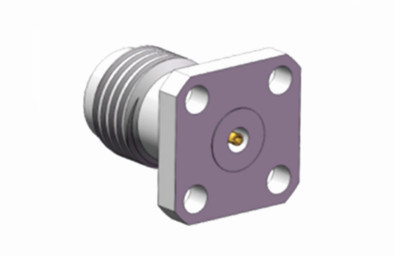

2.4mm Female Microstrip RF Connector Stainless Steel Material With 4-hole Flange

             2.4mm Female Microstrip RF Connector Stainless Steel Material with 4-hole Flange

The 2.4mm connectors represent a class of high-performance millimeter wave (MMW) connectors, operating at frequencies up to 50GHz. They utilize an air interface with a threaded connection and are distinguished by their compact size, lightweight construction, high operational frequency, and reliable connection. These attributes make them extensively useful in high-frequency microwave measurements and millimeter wave applications.

The general-purpose RF and microwave applications often employ high-precision 50Ohm coaxial 2.4mm connectors. Recognized for their high performance, these connectors serve in diverse test and measurement environments, encompassing cellular to satellite communications, ensuring proper equipment and cable interconnect matching. Manufactured from sturdy stainless steel, these connectors are built to endure repeated usage. They are designed with an air dielectric and incorporate a low-loss plastic support for the center conductor, enhancing their overall efficiency and functionality.

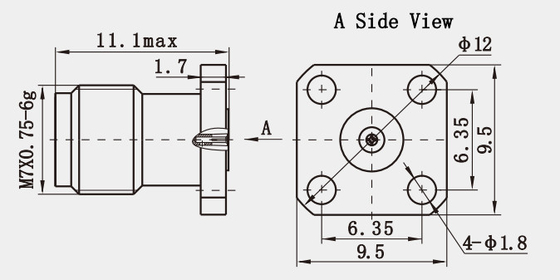

Specification (mm):



Features:

1. Low Insertion Loss:
Designed to minimize signal transmission losses, the 2.4mm stainless steel RF connector offers very low insertion loss. This is crucial for maintaining signal quality and reducing energy waste, especially in high-frequency applications.
2. High-Frequency Range:
Supporting frequencies from DC to 50GHz, this connector is suitable for a variety of high-frequency applications. Its performance makes it ideal for modern communication systems and radar systems.
3. Dimensional Compatibility:
Mechanically compatible with the 1.85mm size, the 2.4mm stainless steel RF connector can be interchangeably used with the 1.85mm connector in the same system, providing convenience for system design and upgrades.


Application:

1. Antenna Applications
High-Performance Antenna Connections: 2.4mm connectors are widely used in high-performance antenna connections due to their high-frequency range and low insertion loss characteristics. For example, in wireless communications and satellite reception systems, these connectors ensure signal transmission stability and minimize energy loss.
Harsh Outdoor Environments: Thanks to its stainless steel passivated body material, the 2.4mm connector is corrosion-resistant and suitable for outdoor harsh environments, such as mobile communication base station antennas.
2. Audio Applications
Professional Audio Equipment: In professional audio equipment, especially where high-frequency transmission is required, 2.4mm connectors offer a reliable and high-performance connection method. This ensures high-fidelity audio transmission in advanced sound systems and professional recording equipment.
Live Sound Systems: For concerts, theaters, and other large events, 2.4mm connectors are preferred for connecting various audio devices, such as speakers and mixers, due to their durability and reusability.
