| Item: | Millimeter Wave Connectors | Gender: | Female |
|---|---|---|---|
| Material: | Stainless Steel | Keywords: | 1.85 Mm MMW Connectors |
| Plating: | Passivated | Application: | RF |
| Body Style: | Straight | ||
| High Light: | Female 1.85mm RF Connector,Stainless Steel 1.85mm RF Connector,Flange Mout 1.85mm RF Connector |
||
1.85 Female Flange Mout Type Stainless Steel Material with Long Microstrip
Specification:
|
Electronic and Material Characterials |
||
| Impedance | 50Ohm | |
| Frequency Range | DC~67GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| VSWR | ≤1.05+0.005f | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male |
Beryllium bronze gold plated |
| Female | Beryllium bronze gold plated | |
| Shell and other metal parts |
Brass /stainless Stain gold plated /passivated |
|
| Insulator | PLF | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

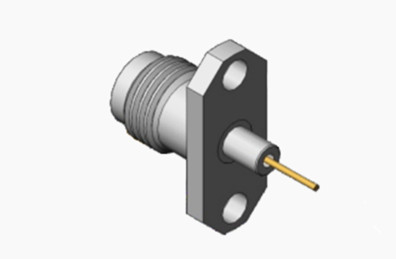

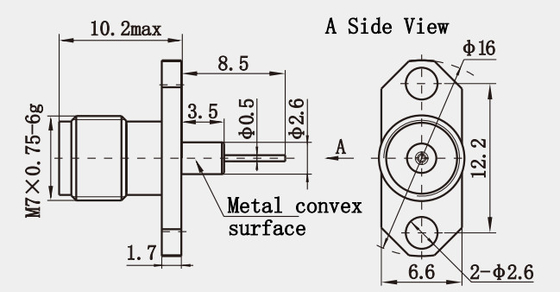

More Pictures of 1.85 Female Flange Mout Type Stainless Steel Material with Long Microstrip :
Features:
The 1.85mm RF coaxial connector is a high-performance millimeter wave connector that can operate at frequencies of up to 67 GHz, making it an ideal choice for high-frequency microwave measurements and millimeter wave devices. The name originates from its external conductor's inner diameter of 1.85mm. This type of connector uses air as the insulating medium and employs a threaded connection method to ensure the reliability and high performance of the connection. Structurally, although similar to the 2.4mm connector, the 1.85mm connector is smaller in volume and lighter in weight, while maintaining the advantage of high-frequency usage.
The design of the 1.85mm connector fully optimizes the mechanical structure to ensure excellent electrical performance even at frequencies up to 67GHz. Its characteristic impedance is usually 50Ω, It is also designed to withstand up to 1000 cycles of connection and disconnection. Such durability is particularly important for applications in high-frequency measurement and harsh environments.
Application:
1. High-Frequency Microwave Measurements: The 1.85mm connector can operate at frequencies of up to 67 GHz, making it an indispensable component in high-frequency microwave measurement equipment. In microwave test instruments requiring high-precision signal transmission, this connector provides a stable and reliable connection, ensuring the accuracy of measurement data.
2. Precision Instruments and Equipment: In precision instruments and equipment requiring fine control and higher operating frequency bands, the 1.85mm connector ensures efficient connections between devices with its excellent performance. This is particularly important in high-tech industries such as aerospace and satellite communications, where the connector is used to transmit critical signals, ensuring clarity and reliability of communication.
3. Satellite Communications: Within satellite communication systems, the 1.85mm connector is commonly used to interface between antennas and receivers or transmitters. Due to the high frequencies involved and the strict requirements for signal integrity in satellite communication signals, this connector provides high-quality signal transmission support.
