| Plating: | Gold Plated/Nickel Plated | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | ISO-9001-2015 | Dielectric: | PLF |
| Type: | RF Connector | Gender: | Female |
| Durability: | 500 Cycles | ||
| High Light: | Stainless Steel Female Flange RF Connector,1.0 Series Female Flange RF Connector |
||
Stainless Steel 1.0 Series Female Flange RF Connector Matched Pinφ0.23 Hole Depth 1mm
The 1.0 series connector is a high-performance millimetre wave connector designed for use up to 110GHz with an air interface threaded connection. It boasts a small size, lightweight design, ultra-high frequency capabilities, and reliable connectivity. This makes it highly suitable for a wide range of applications in millimetre wave communication and radar systems.
Specifiacation:
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | DC~110GHz |
| Dielectrics Voltage-resistance | 250VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.1+0.005f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics | |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Brass, Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF |
| Temperature Range | -55 ~ +125℃ |
Feature:
The manufacturing of the 1.0 mm wave radio frequency coaxial connector involves precision machining techniques, including high-quality material selection and strict process control. Especially for the adapter part, its design must ensure low reflection and high repeatability, which are key factors in ensuring test accuracy. Different types of adapters, such as 1.0mm-1.0mm, 1.0mm-1.85mm, and coaxial-waveguide and coaxial-microstrip adapters, all exhibit excellent standing wave ratios and return loss performance, helping to reduce measurement errors and improve signal transmission quality.

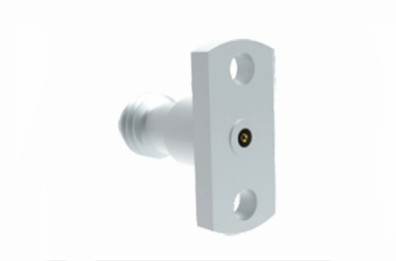

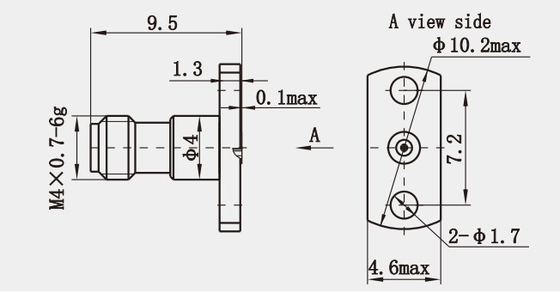

Outline Drawing(mm) and Picture of
Stainless Steel 1.0 Series Female Flange RF Connector Matched Pinφ0.23 Hole Depth 1mm
Application:
* Radar Systems: In modern radar systems, especially those requiring compact components to fit space constraints, the 1.0 mm wave RF coaxial connector is widely adopted for its high performance and compact design.
* Satellite Communications: Satellite communication equipment frequently uses the millimeter-wave band for signal transmission, and this connector provides a reliable connection method, ensuring signal stability and communication reliability.
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Other 1.0mm RF Adapters
1. 1.0mm Female to Female RF Adapter
(Model No.: 1.0-KK)
2. 1.0mm Male to Male RF Adapter
(Model No.: 1.0-JJ)
NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
