Product Details:
Payment & Shipping Terms:
|
| Plating: | Gold Plated/ Passivation | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | ISO-9001-2015 | Dielectric: | PEI/PLF |
| Type: | RF Connector | Gender: | Male |
| Durability: | 500 Cycles | ||
| High Light: | MF108A RF Connector,Male Stainless Steel RF Connector,CXN3506 RF Connector |
||
MSSM Series Male Stainless Steel RF Connector for CXN3506/MF108A Cable
The MSSM series of products are high-performance millimeter-wave connectors with a frequency of up to 40GHz. They use air interface threaded connections and can be interchanged with SSMA series connectors. The MSSM series of connectors have the characteristics of small size, light weight, high operating frequency, and reliable connection. They are widely used in highfrequency microwave measurements and millimeter-wave
devices.
Specifiacation:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Dielectrics Voltage-resistance | 500VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.07+0.007f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics | |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF/PEI |
| Temperature Range | -55 ~ +125℃ |
Feature:
1. Compact Design: The MSSM RF coaxial connector is designed to be miniature, making it particularly useful in space-limited environments. This compact design not only saves valuable panel space but also facilitates integration into various portable or miniaturized electronic devices.
2. Reliable Connection: The contact portion of the MSSM connector is typically made of high-quality metal materials with good corrosion resistance and mechanical strength, ensuring the reliability and durability of the connection. Precision manufacturing processes guarantee the contact performance of the connector, thereby ensuring stable and accurate signal transmission.
3. Easy to Use: The design of the MSSM series connectors takes user convenience into account, adopting an easy-to-operate structure such as a push-in locking mechanism, allowing users to quickly and easily complete connection and disconnection operations, greatly improving work efficiency.
4. Interchangeability: The MSSM RF coaxial connectors follow international standards and can be used interchangeably with similar products. This is particularly important for users who need to maintain and upgrade equipment, as it allows for flexible choices between different manufacturers without being limited to a specific brand.

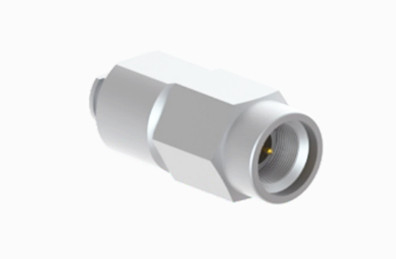

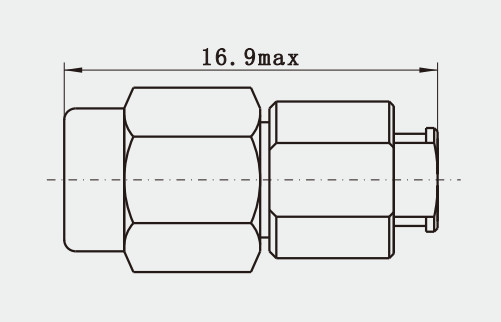

Outline Drawing(mm) and Picture of MSSM Series Male Stainless Steel RF Connector for CXN3506/MF108A Cable
Application:
1. Wireless Communication Equipment: MSSM connectors are widely used in wireless communication equipment such as base stations, antenna systems, and wireless access points. Their compact design allows for installation in limited spaces, while their high electrical performance ensures signal transmission stability and efficiency, which is crucial for improving wireless communication quality and coverage.
2. Portable Instruments: In portable testing and measuring devices, such as spectrum analyzers and portable oscilloscopes, MSSM connectors are the ideal choice due to their small size, light weight, and reliable performance. They not only save space but also ensure accurate signal transmission in mobile environments.
