Reliable and Durable Stainless Steel Female to Female RF Coax Adapter Connector
The 1.0 series connector is a high-performance millimeter wave connector designed for frequencies up to 110GHz. It utilizes an air interface threaded connection and boasts a compact size, lightweight design, and ultra-high frequency capabilities. With its reliable connection, this connector is well-suited for applications in millimeter wave communication and radar systems.
Specifiacation:
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | DC~110GHz |
| Dielectrics Voltage-resistance | 250VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.1+0.005f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics | |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF |
| Temperature Range | -55 ~ +125℃ |
Feature:
1. High-frequency transmission performance: The 1.0mm RF coaxial connector is designed for the transmission of high-frequency signals, effectively transferring RF and microwave signals. It is suitable for wireless communication, broadcasting, television, radar, and other fields.
2. Strong anti-interference ability: Due to its structural design, this connector has good anti-interference ability, capable of maintaining stable signal transmission in complex environments.
3. Convenient and reliable installation: The 1.0mm RF coaxial connector offers various installation methods, including panel mounting, PCB mounting, and cable mounting, adapting to different application needs, and providing a reliable connection.

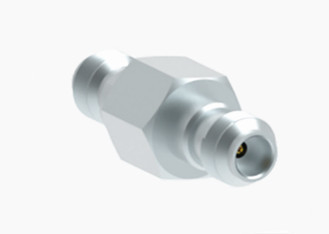

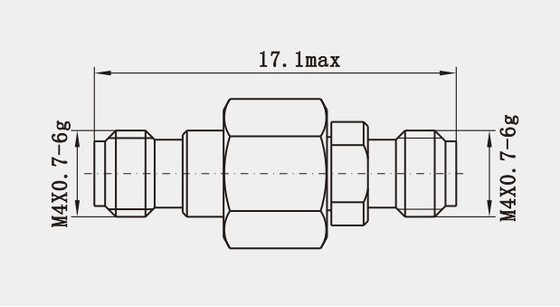

Outline Drawing(mm) and Picture of Reliable and Durable Stainless Steel Female to Female RF Coax Adapter Connector
Application:
1. Wireless Communication Systems: In modern wireless communication systems, especially those involving millimeter wave technology such as 5G networks, 1.0mm connectors are used to connect base stations, antennas, and related equipment to ensure efficient signal transmission and reception. The high performance of these connectors ensures extremely low signal loss and a high signal-to-noise ratio, making them an indispensable component for achieving high-speed wireless communication.
2. Test and Measurement Equipment: In the field of RF testing and measurement, connectors requiring high precision and high-frequency response are needed for equipment calibration and signal analysis. 1.0mm connectors are suitable for testing instruments such as network analyzers and spectrum analyzers, and their precise manufacturing standards ensure the accuracy of test results.
