Integrity and Durability 1.0mm Male to Male RF Adapter Stainless Steel Connector
The 1.0 series connector is a high-performance millimeter wave connector, with operating frequencies reaching up to 110GHz. It utilizes an air interface threaded connection and boasts a compact size, lightweight design, and ultra-high frequency capabilities. This reliable connector offers advantages such as small size, lightweight design, and ultra-high frequency capabilities. It is suitable for use in millimeter wave communication and radar systems.
Specifiacation:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | DC~110GHz |
| Dielectrics Voltage-resistance | 250VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.1+0.005f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics | |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF |
| Temperature Range | -55 ~ +125℃ |
Feature
* In testing systems, the quality of the connector directly affects the signal transmission quality; thus, selecting a high-quality connector is crucial for ensuring testing accuracy.
* Considering the varying needs of different test environments, choosing the right type and level of connector is essential for ensuring testing accuracy.
* As wireless communication technology advances, testing equipment needs constant upgrades to support higher frequencies and bandwidths, posing higher demands on connector performance.

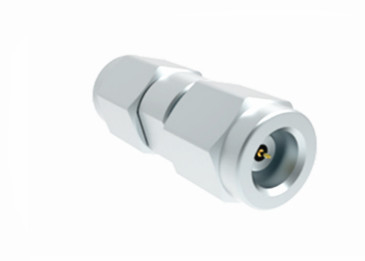

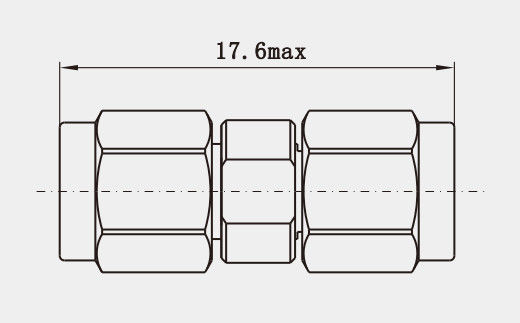

Outline Drawing(mm) and Picture of
Integrity and Durability 1.0mm Male to Male RF Adapter Stainless Steel Connector
Application:
* When selecting a 1.0mm RF coaxial connector, consider parameters such as standing wave ratio and return loss to ensure high precision and efficiency in testing.
* For researchers engaged in wireless communication and perception studies, understanding the performance characteristics and applicable scenarios of different types of connectors can help them better choose the right testing components.
* Before implementing tests, thorough equipment calibration and performance checks should be conducted to ensure the accuracy and reliability of the test results.
Product Cataloge:
| RF Adapter |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Other 1.0mm RF Adapters
1. 1.0mm Female to Female RF Adapter
(Model No.: 1.0-KK)
2. 1.0mm Male to Male RF Adapter
(Model No.: 1.0-JJ)
NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
Contact Person: Elite
Tel: +8613609167652
