1.0MM Female Stainless Steel Flange RF Socket Connector with Microstrip
The 1.0mm series connector is a high-performance millimeter wave connector that can be used up to 110GHz. It adopts an air interface threaded connection and has the advantages of small size, lightweight, ultra-high frequency, and reliable connection. This makes it suitable for millimeter wave communication and radar system applications.
Specifiacation:
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | 0.04DC~110GHz |
| Dielectrics Voltage-resistance | 250VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.1+0.005f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics | |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF |
| Temperature Range | -55 ~ +125℃ |
Feature:
1. Physical Size and Weight
*Compact Size: The 1.0mm connector is relatively small in size, making it particularly useful in space-limited applications.
*Lightweight: The compact size also results in lighter weight, which is very beneficial for applications requiring portable equipment.
2.High-Frequency Performance
*Low Loss: The 1.0mm connector has lower insertion loss at high frequencies, ensuring the quality and efficiency of signal transmission.
*High Return Loss: The connector also boasts high return loss, meaning less signal interference and better transmission results.
3. Versatility
*Wide Range of Applications: The 1.0mm connector is not only suitable for millimeter wave communication systems but also can be used in radar, satellite communications, and more.
*Compatibility: It is compatible with various RF devices and systems, adding flexibility to its use.

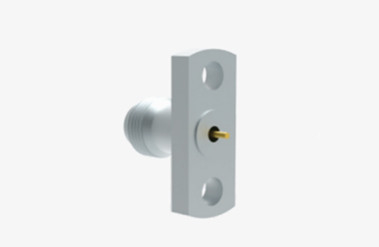

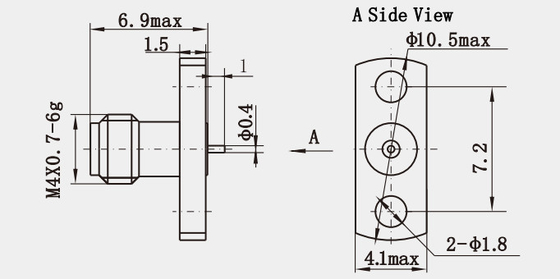

Outline Drawing(mm) and Picture of
1.0MM Female Stainless Steel Flange RF Socket Connector with Microstrip
Application:
1. Satellite Communications
*Space Optimized: For satellite communications, where size and weight are critical, the 1.0mm connector offers a space-optimized solution. Its compact size is ideal for satellite payloads, where every gram counts towards launch costs and efficiency.
*High-Frequency Compatibility: Satellite communication systems often utilize high-frequency bands to accommodate larger data throughput. The 1.0mm connector's capability to handle high frequencies ensures efficient signal transfer between satellites and ground stations.
2. Test and Measurement Equipment
*Precision Testing: In the realm of test and measurement equipment, accuracy is crucial. The 1.0mm connector, with its laboratory precision grade, allows for precise measurement of high-frequency signals, making it invaluable for calibration and performance testing.
*Wide Bandwidth: The wide bandwidth support of the 1.0mm connector simplifies the process of measuring signals across a broad range of frequencies. This reduces the need for multiple types of connectors, streamlining testing procedures and reducing costs.
