1.0mm Series Stainless Steel Male Plug RF Cable Connector for MF152A
The 1.0 series connector is a high-performance millimeter wave connector with a usage frequency of up to 110GHz. It utilizes an air interface threaded connection and boasts a small size, lightweight construction, ultra-high frequency usage, and reliable connections among other advantages. This makes it suitable for applications in millimeter wave communication and radar systems.
Specifiacation:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | DC~110GHz |
| Dielectrics Voltage-resistance | 250VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.1+0.005f |
| Material & Mechanical Characteristics | |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF |
| Temperature Range | -55 ~ +125℃ |
Feature:
1.Ultra-Wideband Capability
*Broad Frequency Coverage: The 1.0mm connector covers an ultra-wideband frequency range from DC to 110GHz. This feature greatly simplifies the testing process as there is no need to replace different connectors for testing from direct current to millimeter wave bands.
*Reduced Number of Connections: Due to its broadband capability, the 1.0mm connector reduces the number of connector changes required during testing, thereby improving testing efficiency.
2.Precision Grade Classification
Application Differentiation: The General Purpose Grade is mainly used for connectors and cable assemblies, suitable for general precision requirements, while the Laboratory Precision Grade is used for higher precision measurement and testing.

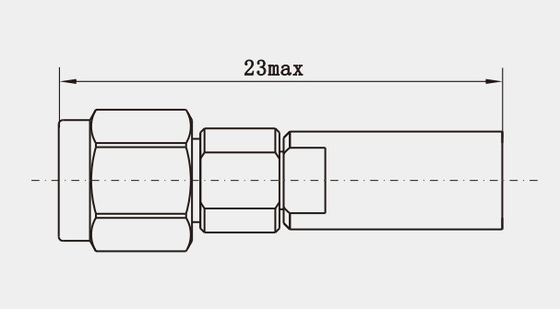

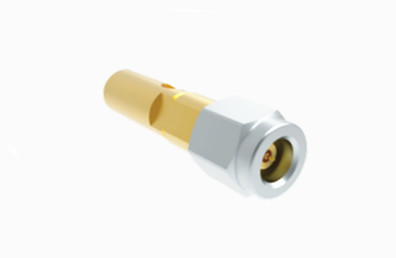

Outline Drawing(mm) and Picture of
1.0mm Series Stainless Steel Male Plug RF Cable Connector for MF152A
Application:
1. Millimeter Wave Communication Systems
*High Data Rates: The 1.0mm connector supports frequencies up to 110 GHz, enabling ultra-high data rate transmissions that are essential for millimeter wave communication systems. These systems rely on the broad bandwidth and low loss characteristics of the connector to maintain signal integrity.
*Miniaturization: With its small size and lightweight construction, the 1.0mm connector is ideal for integrating into portable or compact millimeter wave communication devices. Its compact form factor allows for the design of sleeker, more portable devices without sacrificing performance.
2. Radar Systems
*Enhanced Resolution: Radar systems require high-frequency connectivity to achieve precise target detection and resolution. The 1.0mm connector, with its ability to operate at high frequencies, provides clear signal transmission, enhancing the overall performance of radar systems.
