Product Details:
Payment & Shipping Terms:
|
| Product Name: | TMA Connector | Plating: | Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Material: | Brass |
| Contact Material: | Brass, BeCu | Durability: | 500 Cycles |
| Design Standard:: | IEC 60169-17 | Body: | Straight |
| High Light: | Nickel Plated RF Coaxial Adapter Connector,Flange Mount Stainless Steel RF Connector,TMA Female RF Connector |
||

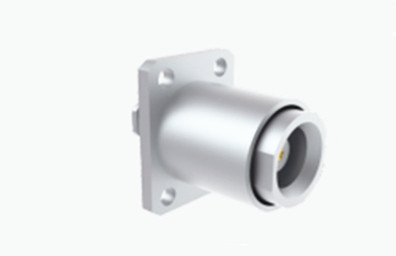

TMA Female Flange Mount Stainless Steel RF Connector
Specification
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~6GHz
|
|||
|
Rated Voltage
|
500VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
1500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance
|
Outer conductor
|
≤2.5mΩ
|
||
|
Center conductor
|
≤2mΩ
|
|||
|
VSMR
|
≤1.3
|
|||

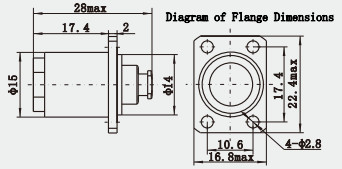

Mechanical Specification
Application:
Communications Equipment: In radio transceivers, broadcast equipment, and other communication hardware where a robust, mid-power connector is needed.
Test Equipment: In test instruments and measurement devices where reliability and frequency range are critical factors.
Industrial Devices: In industrial control systems, sensors, and monitoring equipment that require a sturdy connector solution.
Features:
Blind-Mate Capability: The TMA connector is designed for blind mating, which allows it to be connected without direct visual alignment. This feature is particularly useful in equipment racks and other applications where access is limited.
Size and Weight: The TMA connector is relatively compact and lightweight, making it suitable for applications where space is at a premium, such as in portable devices and densely packed electronics.
Axial and Radial Floating: The TMA can accommodate both axial (up/down) and radial (side-to-side) movement, which helps to compensate for mechanical tolerances and variations in mounting hardware.
NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
