Product Details:
Payment & Shipping Terms:
|
| Product Name: | TMA Connector | Plating: | Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Material: | Brass |
| Contact Material: | Brass, BeCu | Durability: | 500 Cycles |
| Design Standard:: | IEC 60169-17 | Body: | Straight |
| High Light: | RF Connector With Microstrip,Female Flange Mount RF Connector,TMA RF Coaxial Adapter Connector |
||

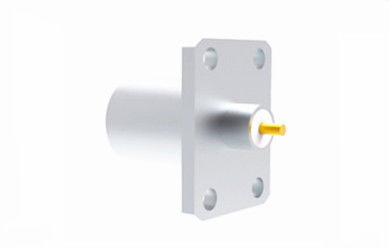

TMA Female Flange Mount RF Connector with Microstrip
Specification
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC~6GHz
|
|||
|
Rated Voltage
|
500VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
1500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance
|
Outer conductor
|
≤2.5mΩ
|
||
|
Center conductor
|
≤2mΩ
|
|||
|
VSMR
|
≤1.3
|
|||
Mechanical Specification
Application:
Communications: TMA connectors are used in communication equipment such as tower-mounted amplifiers (TMAs), which enhance the sensitivity of macrocellular radios, improving uplink budgets to achieve higher capacity and better coverage areas.
Electronic Devices: In various electronic devices, TMA connectors are widely used due to their medium power handling capabilities and compact design. They are suitable for reliable RF connections in applications like wireless communication equipment, test instruments, and other RF applications.
RF Coaxial Connector Series: The TMA connector is one of many types of RF coaxial connectors, including SMA, SMB, BMA, SMP, TNC, Type-N, L29, etc., each with different characteristics and application areas.
Features:
TMA connectors have a broad range of applications in RF communication equipment and electronic devices, especially in scenarios requiring medium power and smaller connectors. Moreover, TMA technology plays a significant role in material analysis, helping scientists and engineers understand the thermomechanical characteristics of materials.
NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
