Product Details:
Payment & Shipping Terms:
|
| Product Name: | N Type RF Coaxial Conector | Plating: | Gold Plated/Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |

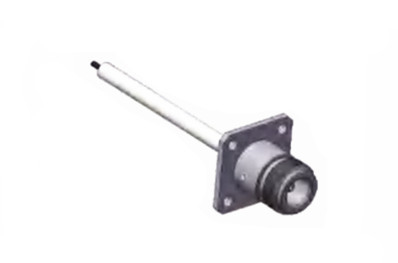

| Model: | N-KB3A | Gender: | Female |
| High Light: | Nickel Plated PCB Mount RF Connector,N Female Flange RF Connector,N Type RF Coaxial Connector |
||
N type connectors are threaded coupling coaxial connectors with good anti-vibration capability and electrical characteristics, and a typical frequency range up to 11GHz. Our frequency range can be up to 18GHz. They are suitable for different types of RF cables and are commonly used in aviation, aerospace, radar, microwave and digital communications, test and measurement instruments, etc. We can customize various type-N connectors and adapters according to customers' different requirements.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

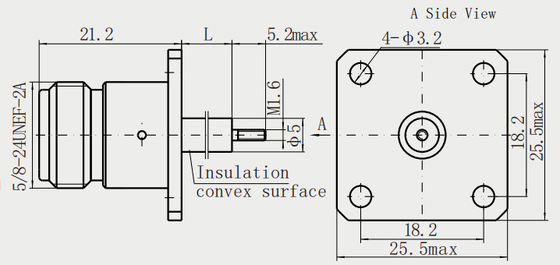

Detailed Drawing
Applications:
The N-type connector is a type of RF coaxial connector, primarily used for connecting coaxial cables. This connector is characterized by its waterproof, weatherproof design and threaded connection that can be rotated to lock in place. Its medium size and reliable design make it one of the earliest connectors to support microwave frequency signals.
The applications of N-type connectors are wide-ranging, including but not limited to communication systems, radar systems, radio systems, as well as test and measurement instruments. Due to its capability to handle frequencies up to 18GHz, it is particularly suitable for devices and systems that require handling high-frequency signals.
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
