| Body Style: | Straight | Product Name: | 2.92mm,K Type,SMK |
|---|---|---|---|
| Plating: | Passivated | Insulator: | PTFE |
| Gender: | Female | Material: | Stainless Steel |
| Color: | Golden | Durability: | 500 Cycles |
| Highlight: | 50 Ohm RF Coaxial Connector,2.92mm RF Coaxial Connector,50 Ohm micro coax connector |
||

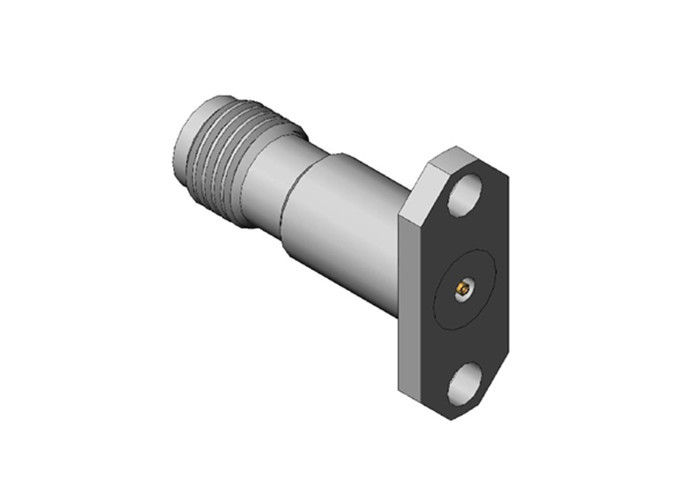

2.92mm 50 Ohm Stainless Steel Straight RF Coaxial Connector Female
K-type (2.92mm,SMK) connectors are adopt air interface, which makes them with small in size, light in weight and very reliable in connection, etc.
These K-type(2.92mm,SMK) millimeter wave connectors, also called 2.92mm connectors. It's one of the most popular meter wave connectors.The broad frequency range is up to 40GHz. They can be mated with SMA and 3.5mm connectors.
The high precision 50Ohm coaxial 2.92 mm (Female) connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Features:

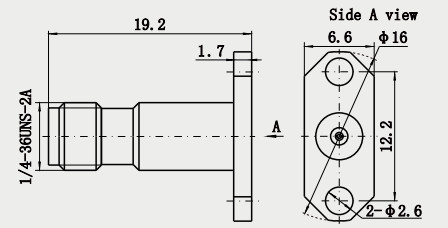

Outline Drawing of 2.92mm 50 Ohm Stainless Steel Straight RF Coaxial Connector Female :(mm)
| Model Number | Description |
| K-KFD74G | 2.92mm female 2-hole flange rf connector staimless steel |
Specification of 2.92mm 50Ohm Stainless Steel Straight RF Coaxial Connector Female :(mm)
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 250VRMS* | |
| Dielectrics Voltage-resistance | 750VRMS* | |
| Insulation Resistance | ≥ 5000 MΩ | |
| Center Resistance | Outer conductor | ≤2.0mΩ |
| Center conductor | ≤3.0mΩ | |
| VSWR | ≤1.05 + 0.005f | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Temperature | -55℃ ~ +125℃ | |
Application of 2.92mm 50Ohm Stainless Steel Straight RF Coaxial Connector Female :(mm)
| Network | Satcom |
| Computer/LANs | Computer/LANs |
| Mobile communication | Instrumentation |
| Base Station | Mobile communication |
| Outdoor facilities | Radar,microwave |
| Telecommunications | Instrumentation |
| Automotive | Jump line join |
| Basic facility | Radio, TV aerial system |
Other 2.92mm Male Female RF Connector:
|
Part Number
|
Description
|
|
K-KFD4
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD28G
|
Stainless steel 2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD8
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-JFD9G |
Stainless steel 2.92mm Type K Male RF Coaxial Connector
|
1.
2.
3.
4.
NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
