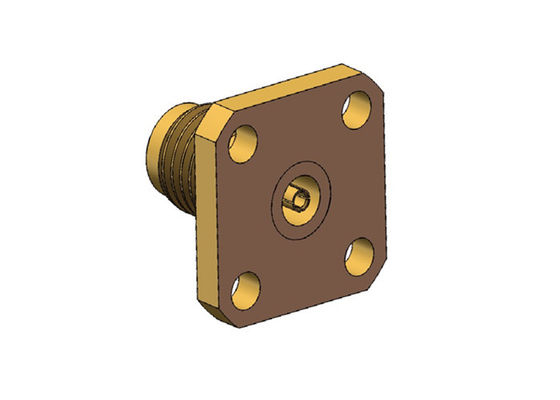

Satelite Communication Panel Mount 2.92mm RF Connector

Large Image : Satelite Communication Panel Mount 2.92mm RF Connector Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	CE,ROHS
Model Number:	K-KFD1

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Material:	Stainless Steel	Gender:	Female
Product Name:	2.92mm,K Type,SMK	Key Features:	4 Holes Flange Panel Connectors
Item:	Millimeter Wave Connectors	Plating:	Passivated
Application:	Satellite Communication	Insulator:	PTFE
High Light:	Panel Mount 2.92mm RF Connector , Satellite Communication 2.92mm RF Connector , Panel Mount female mmcx connector

Satelite Communication Panel Mount 2.92mm RF Connector

K type is also called 2.92 type connector, this series of products is a commonly used millimeter wave connectors, with a frequency of up to 40 GHz can be used with SMA series and 3.5 series products are interchangeable and adopt air interface.With small size, light weight, high frequency of use, reliable connection, etc.

Features:

It can be mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.
Superior electrical performance up to 40 GHz
It has the advantage of small volume, light weight, high use frequency, reliable connect.
Great for applications that require high frequency transmission
Connector mating interface per MIL-STD-348
Female contacts have unique three-slot construction
An air dielectric with a loss-loss plastic center conductor support.
It have the high use frequency, reliable connection.

Outline Drawing of 2.92mm SMK Series Female Straight RF Coaxial Connector:(mm)

Satelite Communication Panel Mount 2.92mm RF Connector 0

Specification of Satelite Communication Panel Mount 2.92mm RF Connector(mm):

Impedance	50 Ω
Frequency Range	DC - 40 GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤ 1.05 + 0.005f
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.0 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: BeCu, Gold Plated
Resilient Contact	BeCu, Nickel Plated
Body / Shell / Housing	Brass, Gold Plated Stainless Steel, Passivated
Insulator	PEI
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m

Other 2.92mm Male Female RF Connector

Part Number	Description
K-KFD3	2.92mm Type K Female RF Coaxial Connector
K-KFD42	Stainless steel 2.92mm Type K Female RF Coaxial Connector
K-KFD62G	2.92mm Type K Female RF Coaxial Connector
K-JFD9G	Stainless steel 2.92mm Type K Male RF Coaxial Connector

Satelite Communication Panel Mount 2.92mm RF Connector 1

Model Number	Description
K-KFD3	K2.92mm female 2-hole flange rf connector
K-KFD3G	Stainless steel K2.92mm female 2-hole flange rf connector

Satelite Communication Panel Mount 2.92mm RF Connector 2

Model Number	Description
K-KFD42	2.92mm K 2-hole flange female rf connector

Satelite Communication Panel Mount 2.92mm RF Connector 3

Model Number	Description
K-KFD62G	2.92mm K female rf connector 2-hole stainless steel

Model Number	Description
K-KFD9G	K 2.92mm rf connector stainless steel 2-hole flange

Application of Satelite Communication Panel Mount 2.92mm RF Connector(mm):

Network	Satcom
Computer/LANs	Computer/LANs
Mobile communication	Instrumentation
Base Station	Mobile communication
Outdoor facilities	Radar,microwave
Telecommunications	Instrumentation
Automotive	Jump line join
Basic facility	Radio, TV aerial system
