RF Coaxial 40GHz 2.92mm Connector 2 Holes Flange Female Brass

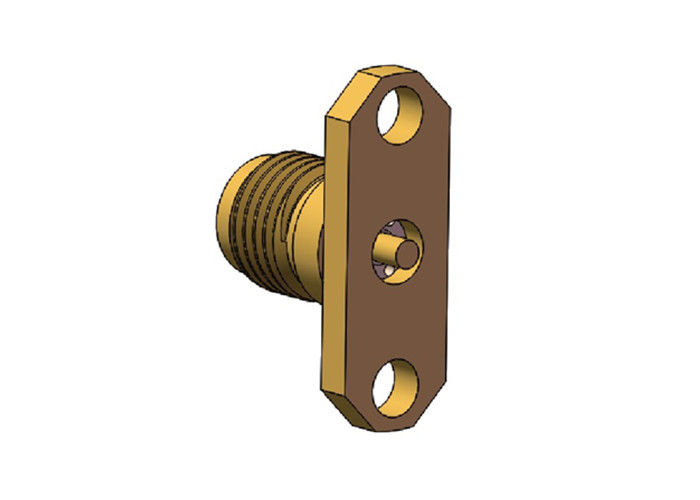

Large Image : RF Coaxial 40GHz 2.92mm Connector 2 Holes Flange Female Brass Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	CE,ROHS
Model Number:	K-KFD21

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Keywords:	2 Holes Flange Panel Connector	Type:	Millimeter Wave Connector
Plating:	Gold Plated	Application:	RF
Insulator:	PTFE	Material:	Brass
Gender:	Female	Impendence:	50Ohm
Highlight:	Brass 2.92mm RF Connector , Flange 2.92mm RF Connector , Brass rf aerial connector

RF Coaxial 40GHz 2.92mm Connector 2 Holes Flange Female Brass

K type is also called 2.92 type connector, this series of products is a commonly used millimeter wave connectors, with a frequency of up to 40 GHz, can be used with SMA series and 3.5 series products are interchangeable and adopt air interface. With small size, light weight, high frequency of use, reliable connection, etc.

RF Coaxial 40GHz 2.92mm Connector 2 Holes Flange Female Brass 0

Model Number	Description
K-KFD21	2-holes flange K 2.92mm female RF connector

Specification:

Impedance	50 Ω
Frequency Range	DC - 40GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤ 1.05 + 0.005f
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.0 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: BeCu, Gold Plated
Resilient Contact	BeCu, Nickel Plated
Body / Shell / Housing	Brass, Gold Plated Stainless Steel, Passivated
Insulator	PEI
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m

Features:

It can mate and interchange with SMA series, K series ,2.4mm,3.5mm connectors.
Superior electrical performance up to 40GHz
It have the advantages of small volume, light weight, high use frequency, reliable connect.
Great for applications that require high frequency transmission
Connector mating interface per MIL-STD-348
Female contacts have unique three-slot construction
An air dielectric with a loss-loss plastic center conductor support.
It has the high use frequency, reliable connect.

Other 2.92mm Male Female RF Connector

Part Number	Description
K-KFD38	2.92mm Type K Female RF Coaxial Connector
K-KFD76G	Stainless steel 2.92mm Type K Female RF Coaxial Connector
K-KFD8	2.92mm Type K Female RF Coaxial Connector
K-JFD9G	Stainless steel 2.92mm Type K Male RF Coaxial Connector

RF Coaxial 40GHz 2.92mm Connector 2 Holes Flange Female Brass 1

RF Coaxial 40GHz 2.92mm Connector 2 Holes Flange Female Brass 2

Application:

Network	Satcom
Computer/LANs	Computer/LANs
Mobile communication	Instrumentation
Base Station	Mobile communication
Outdoor facilities	Radar,microwave
Telecommunications	Instrumentation
Automotive	Jump line join
Basic facility	Radio, TV aerial system
