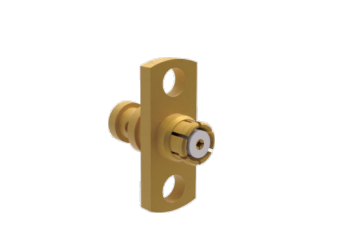

SMP 2 Hole Flange Mount Panel Mount 50ohm Mating for Cable CXN3657
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP RF Connectors | Gender: | Female |
|---|---|---|---|
| Model: | SMP-KF657-15 | Frequency Range: | 0.3MHz-18GHz |
| Housing: | Copper Alloy，Gold Plating | Contacts: | Copper Alloy, Gold Palting |
| Insulator: | PTFE | Insulation Resistance: | >5000MΩ |
| DWV: | 500V | Impendence: | 50 Ohm |
| Temperature: | -55℃～+125℃ | Cable Type: | CXN3657, EQV. Cable |
| In Stock: | >200pcs | ||
| Highlight: | SMP flange mount RF connector,2 hole panel mount SMP connector,50ohm SMP connector for cable |
||
Product Description:
High-Performance SMP RF Connectors (DC–40 GHz)
SMP RF connectors are ultra-miniature, push-on coaxial connectors engineered for high-frequency signal transmission up to 40 GHz. Their compact footprint facilitates high-density board-to-board interconnections, making them the ideal solution for advanced communications, radar systems, and precision electronic equipment. To accommodate diverse assembly requirements, male plugs are available in three interface configurations: Full Detent for maximum retention force, Limited Detent for extended mating cycles, and Smooth Bore for reliable blind-mating applications. These versatile connectors deliver exceptional performance for both PCB and cable assembly applications.
|
Electrical Characteristics
|
||
|
Impedance
|
50Ω
|
|
|
Frequency Range
|
DC~40GHz
|
|
|
Rated Voltage
|
170VRMS
|
|
|
Dielectrics Voltage-resistance
|
500VRMS
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
Outer conductor
|
Normal≤2.5mΩ
|
|
Center conductor
|
Normal≤6mΩ
|
|
|
VSWR
|
≤1.3
|
|
| VSWR | DC~18GHz | 18GHz~26.5GHz | 26.5~40GHz | |
| Straight | ≤1.25 | ≤1.3 | ≤1.4 | |
| Right Angle | ≤1.3 | |||
| Adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| Others | ≤1.3 |
We straight, flange SMP RF connectors, SMP Model:SMP-KF657-15
Cable Model: CXN 3657
Cable OD: 1.46mm
Cable Color: Grey
We also have Right Angle SMP connectors mating Cable CXN3657
The outline demension of SMP RF connectors Jack Mating Cable CXN3657, Model: SMP-KW657-11
More products and detaied specification, please contact us freely.
Applications:
Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.
Customization:
Product Customization Services for SMP RF Connectors are available:
Brand Name: ELT
MOQ: 200 pcs
Price: Depending on the quantity
Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.
We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler.
Packing & Shipping:
Packaging for SMP RF connectors:
1 Piece/ small plastic bag
10 Pieces/ larger plastic bag
100 Pieces/ carton box
The SMP RF connectors comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.
For shipping, the SMP RF connectors is placed in caron. We will supply the tracking No after shipping.
