Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Coaxial Conector | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Durability: | 500 Cycles | Gender: | Female |
| Body Style: | Right Angle | Material: | Brass |
| High Light: | 2-hole Flange SMP RF Connector,Right Angle SMP RF Connector,Female SMP RF Connector |
||

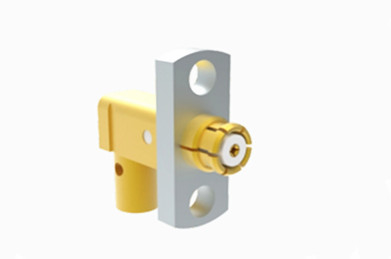

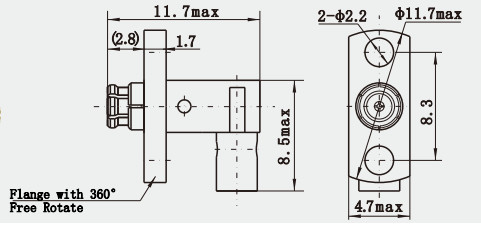

SMP Female Right Angle 2-hole Flange RF Connector for CXN3506/MF108A Connector
SMP is a miniature push-on RF coaxial connector, characterized by its small size, lightweight, excellent seismic performance, and wide operating bandwidth. It has an operational frequency of up to 30GHz (our high-performance SMP connectors can reach 40GHz), and the plug comes in three interface forms: full detent, limited detent, and unthreaded hole (including with braking). These various interface forms can meet the requirements for axial or radial movement in blind mating when using broad-to-broad connectors. They are suitable for installation situations that require high reliability and modular compactness.
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
1. Miniaturized Design: SMP connectors are extremely compact, making them suitable for applications with limited space, such as aviation, aerospace, and portable communication devices.
2. Lightweight: The small size of SMP connectors also contributes to their lightweight nature, which is important for reducing the overall weight of systems, particularly critical in the aerospace industry.
3. Excellent Shock Resistance: SMP connectors are designed to withstand vibrations and mechanical shocks, making them ideal for high-shock environments like military and aerospace applications.
1. Instrumentation: In complex instruments where precise signal transfer and limited space are critical, SMP connectors provide stable connections.
2. Security and Surveillance Systems: For CCTV and other monitoring equipment, SMP connectors can provide the necessary high-speed signal pathways.
3. Research and Laboratory Applications: In scientific research and laboratory settings, SMP connectors are used in various RF and microwave experiments, as well as connections to high-frequency instruments.
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| N Type RF Connector |
| TNC RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
