| Product Name: | SMP RF Coaxial Conector | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS ISO-9001-2015 |
| Durability: | 500 Cycles | Body Style: | Right Angle |
| Material: | Brass | Mount Method: | With Cable |
| Gender: | Female | ||
| High Light: | CXN3506/MF108A Female RF Connector,Gold Plated Female RF Connector,Right Angle Female RF Connector |
||

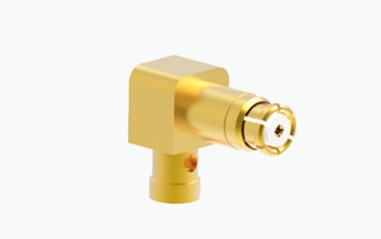

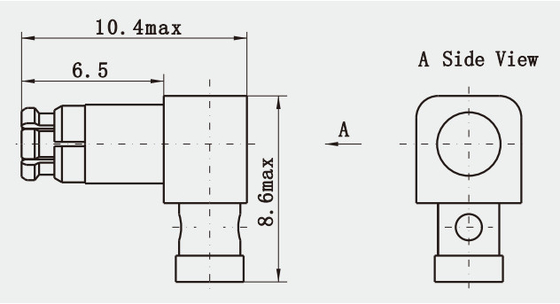

Right Angle Gold Plated Female RF Connector for CXN3506/MF108A Cable
The SMP interface is a compact connector interface that is comparable in size to MMCX connectors yet offers an extended frequency range from DC to 40 GHz. The SMP interconnect series utilizes floating female-to-female adapters, often referred to as "bullets," to facilitate the stacking of circuit boards fitted with SMP male PCB connectors. This robust construction and the ability to accommodate both radial and axial misalignments enable blind mating capabilities. The SMP interface is frequently employed in small-sized high-frequency coaxial modules.
1. High-Reliability Interconnection: SMP connectors are often used in applications requiring high-performance, high-reliability interconnections, such as military, aerospace, and medical equipment.
2. Versatile Applications: SMP connectors can be used in microwave RF (radio frequency) links, test equipment, measurement devices, satellite communications, and any occasion requiring miniaturized, high-performance coaxial interconnect solutions.
3. PCB Integration: SMP connectors can be integrated with printed circuit boards (PCBs), offering surface mount or through-hole mounting options.
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Dielectrics Voltage-resistance | 500VRMS* | |
|
Center Resistance
|
Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze,gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
1. RF Shielding and Interference Minimization: The shielding performance of SMP connectors helps in transmitting clean, noise-free signals in high-interference environments.
2. Space-Restricted Applications: In designs where space is at a premium or there is a specific requirement for miniaturization, SMP connectors are an ideal choice due to their smaller size.
3. High-Performance Computing and Communication Infrastructure: In computing and communication infrastructures requiring high performance and signal integrity, SMP connectors offer a reliable connection solution.
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
