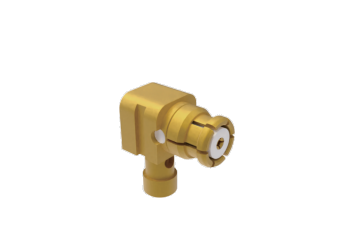

SMP Right Angle Jack 50ohm Suitable for Cable CXN3657
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP RF Connectors | Gender: | Female |
|---|---|---|---|
| Model: | SMP-KW657-11 | Frequency Range: | 0.3MHz-18GHz |
| Housing: | Copper Alloy，Gold Plating | Contacts: | Copper Alloy, Gold Palting |
| Insulator: | PTFE | Insulation Resistance: | >5000MΩ |
| DWV: | 500V | Impendence: | 50 Ohm |
| Temperature: | -55℃～+125℃ | Cable Type: | CXN3657, EQV. Cable |
| In Stock: | >200pcs | ||
| Highlight: | SMP right angle jack 50ohm,SMP RF connector for cable CXN3657,50ohm SMP right angle connector |
||
Product Description:
SMP RF connectors are miniature push-on RF coaxial connectors designed for high-frequency applications up to 40 GHz. Their compact design enables high-density board-to-board interconnections, making them widely used in communications, radar, and electronic equipment. The male plug is available in three configurations—full detent, limited detent, and smooth bore—optimized respectively for high retention force, frequent mating cycles, and blind-mating applications, thus meeting diverse requirements for PCB and cable assembly.
|
Electrical Characteristics
|
||
|
Impedance
|
50Ω
|
|
|
Frequency Range
|
DC~40GHz
|
|
|
Rated Voltage
|
170VRMS
|
|
|
Dielectrics Voltage-resistance
|
500VRMS
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
Outer conductor
|
Normal≤2.5mΩ
|
|
Center conductor
|
Normal≤6mΩ
|
|
|
VSWR
|
≤1.3
|
|
| VSWR | DC~18GHz | 18GHz~26.5GHz | 26.5~40GHz | |
| Straight | ≤1.25 | ≤1.3 | ≤1.4 | |
| Right Angle | ≤1.3 | |||
| Adapter | ≤1.25 | ≤1.3 | ≤1.4 | |
| Others | ≤1.3 |
The outline demension of SMP RF connectors Jack Mating Cable CXN3657, Model: SMP-KW657-11
SMP RF connectors Cable Assemblies for your reference:
Cable Model:CXN 3657
Cable OD: 1.46mm
Cable Color : Grey
Frequency:up to 18GHz, 40GHz
We also have straight, flange SMP RF connectors, SMP Model:SMP-KF657-15
Cable Model: CXN 3657
Cable OD: 1.46mm
Cable Color: Grey
More products and detaied specification, please contact us freely.
Applications:
Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.
Customization:
Product Customization Services for SMP RF Connectors are available:
Brand Name: ELT
MOQ: 200 pcs
Price: Depending on the quantity
Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.
We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler.
Packing & Shipping:
Packaging for SMP RF connectors:
1 Piece/ small plastic bag
10 Pieces/ larger plastic bag
100 Pieces/ carton box
The SMP RF connectors comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.
For shipping, the SMP RF connectors is placed in caron. We will supply the tracking No after shipping.
