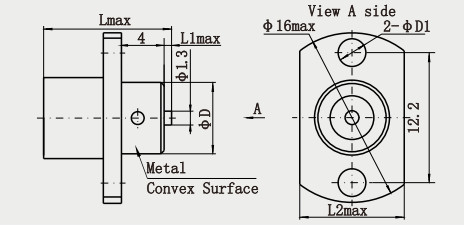

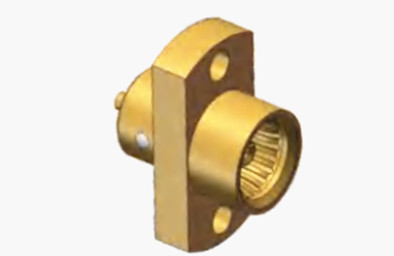

BMA Female Brass Flange Mount with Microstrip RF Coaxial Connector

BMA Female Brass Flange Mount with Microstrip RF Coaxial Connector


Product Detail:



Environmental Specification:


Features:

Mechanical properties

1. Connection method: common welding type, snap type and so on. Welded connection is firm and reliable, suitable for long-term use; snap type is convenient for quick insertion and removal, suitable for scenes that require frequent connection and disconnection.
2. Holding force: the center pin holding force is better, to ensure that the connector will not be easily loosened or dislodged in the process of use, for example, there are BMA connector center pin holding force greater than 20N.
3. Durability: longer mechanical life, generally can withstand a minimum of 500 times the number of plugging and unplugging, some high-quality products are more durable.
4. Compact size: BMA connector is a miniature push-in connector, compact size, suitable for equipment with limited space.
Environmental adaptability

5.Temperature range: able to work in a wide temperature range, usually -55℃ to +125℃, or even wider temperature range, can adapt to a variety of harsh environmental conditions.
6. Vibration and shock resistance: good vibration and shock resistance, can still maintain stable connection performance under severe vibration and extreme temperature conditions, suitable for aerospace, military and other fields.

Application:

1. Aerospace field: In aerospace equipment such as aircraft and satellites, it is used to connect various electronic equipment and cables to realize data transmission and communication. It can work under harsh environmental conditions, such as high temperature, low temperature, strong radiation, etc., and has the advantages of light weight, small volume, high reliability, which helps to reduce the weight and volume of aerospace vehicles and improve their performance and efficiency.

2. Test and Measurement Instruments: Commonly used to connect test instruments and equipment under test, such as vector network analyzers, spectrum analyzers, signal generators and so on. In these test and measurement equipment, BMA female microstrip connectors can provide precise signal connection to ensure the accuracy and reliability of test results.

3. Other fields: It also has a wide range of applications in some miniaturized electronic devices and microwave components. For example, in microwave amplifiers, mixers, filters and other microwave devices, they are used to connect different circuit modules to realize the processing and transmission of microwave signals.

NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
