TNC Straight Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable

Large Image : TNC Straight Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	TNC-J5CG

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	TNC Conector	Plating:	Nickel Plated
Impedance:	50Ω	Material:	Brass
Contact Material:	Brass, BeCu	Durability:	500 Cycles
Design Standard::	IEC 60169-17	Type:	Straight
Highlight:	TNC Straight RF Coaxial Connector , Stainless Steel RF Coaxial Connector , SFF-50-3-1 RF Coaxial Connector

TNC Straight Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable

The TNC series product is a threaded variant of the BNC connector, featuring screw threads for secure mating. These miniature, threaded, waterproof units maintain a consistent 50-ohm impedance and operate within the DC-11 GHz frequency range. There are two main types of TNC connectors: standard and reverse polarity. Typically constructed from die-cast and molded components, these cost-effective connectors are well-suited for a variety of commercial applications. Though their performance may not match that of industrial or high-quality grade products, they excel in applications such as antenna connections. TNC connectors are extensively used in avionics, defense, communications, and general industrial sectors. Additionally, reverse polarity and 75-ohm versions of the TNC connector are also available.

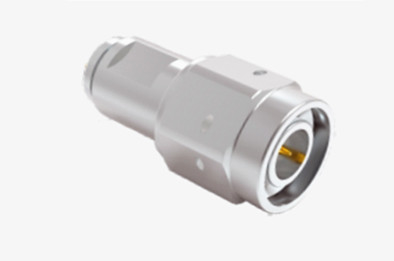

TNC Straight Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable 0

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~4GHz
Rated Voltage	2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance	750VRMS (Maximum sea-level)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	≤6mΩ
	Center conductor	≤1.5mΩ
VSMR	≤1.3

Mechanical Specification

Design Standard	IEC 60169-17
RoHS Compliant	Yes
Centre Contact Termination	Crimp
Outer Contact Termination	Crimp
Mating Cycles	500Cycles
Contact Retention	10N min
Cable Retention	100N min
Mating Force	13.6N max
Un-Coupling Force	13.6N max

Detailed Drawing

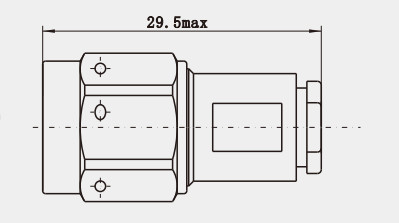

TNC Straight Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable 1

Features:

1. Threaded connection: threaded connection, this connection makes the connection more solid and reliable, compared with bayonet and other connection methods, can better prevent accidental loosening, suitable for occasions that require high stability of the connection, such as in the vibration conditions of the mobile communication equipment.
2. Specific inner diameter of the outer conductor: the inner diameter of the outer conductor is 6.5mm (0.256 inches), and some common other types of RF coaxial connectors, such as BNC type, SMA type, etc. in the size of the obvious difference, easy to identify and differentiate between the use.

Application:

1. Wireless communication: It is used to connect wireless base stations, satellite communication equipment and radio transmitters to provide stable RF connection. In mobile communication, whether it is signal transmission between base stations or communication between base stations and mobile terminals, TNC connectors can ensure efficient and stable transmission of signals to meet the needs of large number of users communicating at the same time.
2. Wired communication: In the wired communication system such as local area network and metropolitan area network, TNC connectors can be used to connect various wired communication equipments, such as switches, routers, etc., to realize high-speed transmission of data and stable operation of the network.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
