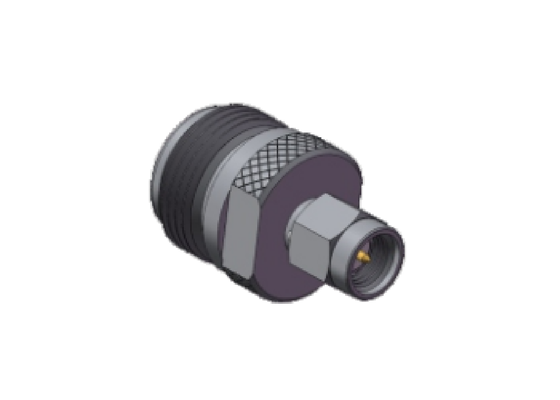

High Quality Industry Grade Straight N Female Jack to SMA Male Plug Adapter up to 11GHz
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Female To SMA Male RF Coaxial Adapter Connector | Model: | N/SMA-KJ |
|---|---|---|---|
| Frequency Range: | 0.3MHz-11GHz | Housing: | Copper Alloy，Nickel Plating |
| Contact: | Copper Alloy, Gold Palting | Insulator: | PTFE |
| Insulation Resistance: | >5000MΩ | DWV: | 500V |
| Impendence: | 50Ω | Temperature: | -55℃～+125℃ |
| In Stock: | >50pcs |
Product Description:
The N-to-SMA RF coaxial adapter connector is a high-frequency widely used connector accessory in the RF and microwave industry, professionally designed to bridge connection gaps between N-type and SMA-type RF devices with mismatched interface specifications. This versatile coaxial adapter solves interface incompatibility issues for various RF equipment, enabling seamless signal transmission between different RF connector standards.
We offer a full range of N to SMA RF coaxial adapter connector configurations with diverse male and female interface combinations to fit distinct wiring and assembly requirements. Common mainstream models include N Male to SMA Female, N Female to SMA Female, and N Male to SMA Male types, covering most conventional RF connection scenarios for communication, testing, and monitoring devices.
Standard straight-body designs are adopted for most specifications, featuring easy installation, compact structure, and space-saving advantages for general industrial and commercial applications. In addition, customized specialized versions such as threaded bulkhead mount RF coaxial adapter connector are available to meet specific installation demands, including panel mounting and fixed chassis assembly.
To accommodate different usage environments and durability requirements, our N-to-SMA RF coaxial adapter connector are provided in 2 premium housing material finishes: nickel-plated copper alloy and passivated stainless steel; center contact: copper alloy gold plating. Both materials deliver excellent electrical conductivity, stable RF signal performance, and strong corrosion resistance, ensuring long-term reliable operation in high-frequency microwave and RF transmission systems.
The outline demension of N Female to SMA Male: N/SMA-KJ
Center Contact: Copper Alloy, Gold Plating; Housing: Copper Alloy, Nickel Plating Up to 11GHz
N Male to SMA Female : N/SMA-JK
Center Contact: Copper Alloy, Gold Plating; Housing: Copper Alloy Nickel Plating Up to 11GHz
N Female to SMA Female : N/SMA-KK Up to 11GHz
Center Contact: Copper Alloy, Gold Plating; Housing: Copper Alloy Nickel Plating Up to 11GHz
N Male to SMA Male : N/SMA-JJ Up to 11GHz
Center Contact: Copper Alloy, Gold Plating; Housing: Copper Alloy Nickel Plating Up to 11GHz
Note: For the above model we also have stainless steel housing model, it can used in extreme and harsh environments, suitable for high-end scenarios requiring high mechanical strength and corrosion resistance
Applications:
Xi'an Elite Electronics is a leading manufacturer of RF coaxial adapter connector, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite communication, radar, tel communications fields for more than 23 years.
Customization:
Customization: N to SMA RF coaxial adapter connector are available
Brand Name: ELT
MOQ: 200 pcs
Price: Depending on the quantity
Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.
We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), ASMP, N, TNC, TNCA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler.
Packing & Shipping:
Packaging for N to SMA RF coaxial adapter connector:
1 Piece in small plastic bag
10 Pieces in larger plastic bag
100 Pieces in carton box
Elite Electronics N to SMA RF coaxial adapter connector comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.
For shipping, the N to SMA RF coaxial adapter connector is placed in caron. We will supply the tracking No. after shipping.
