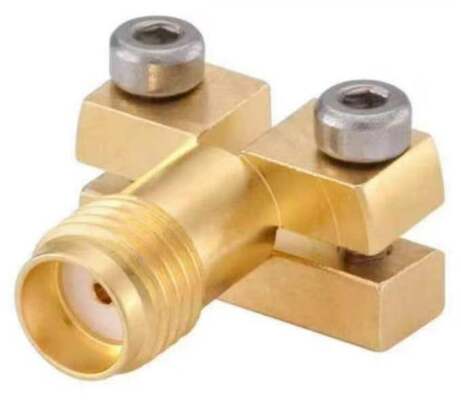

18GHz Female Jack SMA RF Connector for PCB Edge Mount

Large Image : 18GHz Female Jack SMA RF Connector for PCB Edge Mount Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	RoHS
Model Number:	SMA-KFHD13G

Payment & Shipping Terms:

Minimum Order Quantity:	In Stock
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;100pcs/carton
Delivery Time:	5-10 working days for stocked quantity
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	SMA RF Connector	Model:	SMA-KFHD13G
Frequency Range:	0.3MHz-18GHz	Impedance:	50ohm
DWV:	750V	Insulation Resistance:	≥5000MΩ
Center Conductor:	Copper Alloy With Gold Plating	Outer Conductor:	Stainless Steel, Passivation
Gender:	Jack	Insulators:	PTFE
Application:	RF Test Fixture，Chassis，Telecommunication，Phased Array Radar System
Highlight:	18GHz SMA RF connector PCB mount , Female SMA RF connector edge mount , SMA RF connector PCB edge mount

Copper Alloy 50ohm 18GHz Jack SMA RF Connector for PCB Edge Mount

Product Description

SMA RF connectors are compact, threaded, weather-resistant 50Ω RF coaxial connectors widely used in microwave systems, communication equipment, test instruments, and aerospace applications. With an operating frequency up to 18 GHz or higher, they feature stable performance, low VSWR, high durability, and excellent electrical consistency.

We provide a full range of SMA RF connectors including male, female, through hole PCB mount, edge mount for PCB, 2 hole flange mount, 4 hole flange mount, cable connectors can mating cable EQV .086 Cable,.141 Cable, CNX3506, CXN3657, CXN3507, CXN3449, CXN3450, CXN3508, CXN3500, SFF Series Cable, Flexible Cable, Semi-flexible Cable, Semi-rigid Cable, RG178, RG316, RF405, RG402, Low-loss Temperature Stabilized Phase Cable, Armored Testing Cable, and custom configurations.

Technical Data

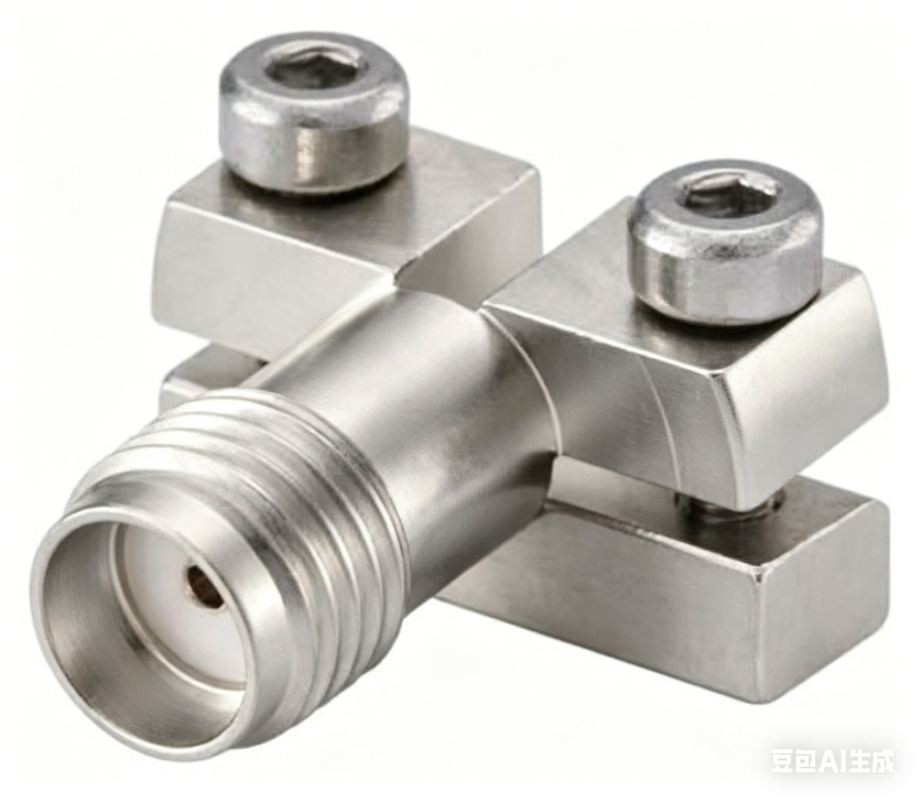

Outline Dimension: Stainless Steel Passivation Jack SMA RF Connectors

Model: SMA-KFHD13G for PCB edge mount

Applications

Aerospace
Aviation
Navigation
Radar systems
Communications
Test Fixture
Electronics

Our SMA RF Connectors use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments, custom solutions available.

Packing & Shipping

Packaging: Each SMA RF Connector is securely packaged in a sturdy cardboard box with foam padding to prevent transit damage.

18GHz Female Jack SMA RF Connector for PCB Edge Mount 2

Shipping: We use reliable courier services for safe and prompt delivery. All shipments include tracking numbers and are packed securely to prevent mishandling during transportation.
