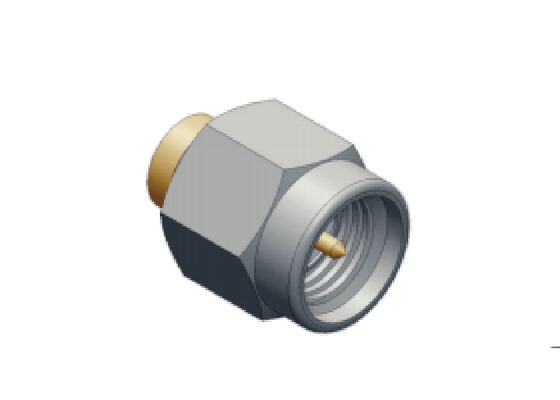

SMA RF Connector 18GHz Plug for RG402, .141 , 3#Semi-rigid/flexible Cable with 96hour Salt Spray Resistance
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMA RF Connector | Model: | SMA-JB3G-9 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Impedance: | 50ohm |
| DWV: | 750V | Insulation Resistance: | ≥5000MΩ |
| Center Conductor: | Copper Alloy Gold Plating | Outer Conductor: | Copper Alloy Gold Plating |
| Cable Type: | RG402, .141 , 3#Semi-rigid/flexible Cable | Gender: | Plug, Male |
| Insulators: | PTFE | Application: | PCB Application, RF Test Fixture，Chassis，Telecommunication，Phased Array Radar System, Intelligent Systems |
| Highlight: | SMA RF connector RG402 plug,SMA connector 18GHz frequency,RF connector salt spray resistant |
||
SMA RF Connector 18GHz Male Plug for RG402, .141 , 2#Semi-rigid/flexible Cable with Salt Spray Resistance
Product Description
Engineered for the exacting demands of high-frequency applications, our SMA RF connectors deliver superior performance from DC to 18 GHz. By integrating precision miniaturization with robust construction, these interconnects ensure reliable signal transmission in the most mission-critical environments.
Performance-Driven Design
At the heart of our technology lies a commitment to signal integrity. Ultra-low insertion and return loss characteristics guarantee stable transmission across wideband systems, ensuring your high-frequency applications operate with maximum efficiency. This precision engineering results in performance that consistently exceeds standard interconnect solutions.
Space-Efficient Reliability
Optimizing board space without compromising performance is critical in modern electronics. Our compact, lightweight SMA connectors provide the ideal solution, delivering full electrical and mechanical capability in a footprint designed for spatial efficiency.
Comprehensive Connectivity Solutions
We offer a complete portfolio of SMA connector types to meet diverse integration requirements:
Cable Connectors: For flexible interconnection.
Flange Mount Connectors: Providing secure panel mounting.
Bulkhead Connectors: Engineered for robust partition mounting.
PCB Mount Connectors: Designed for direct board integration.
Technical Data
|
Electrical Characteristics |
|
|
Model No. |
SMA-JB3G-9 |
|
Impedance |
50Ω |
|
Frequency Range |
0.3MHz~18GHz |
|
VSWR |
≤1.3 |
|
Dielectric Withstand Voltage |
750 V |
|
Insulation Resistance |
≥ 5000 MΩ |
|
Material & Mechanical Characteristics |
|
|
Center conductor |
Copper Alloy, Gold Plating |
|
Body and other |
Copper Alloy, Gold Plating |
|
Insulation Dielectric |
PTFE |
|
Cable Type |
.141, RG402, 3#Semi-flexible/rigid Cable |
|
Other Index |
96-Hour Neutral Salt Spray Resistance |
Outline Dimension
SMA RF Connector Model: SMA-JB3G-9 ( 96-Hour Neutral Salt Spray Resistance )
Applications
- Aerospace
- Aviation
- Navigation
- Radar systems
- Communications
- Test Fixture
- Instruments
- Electronics
Our SMA RF Connectors use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
