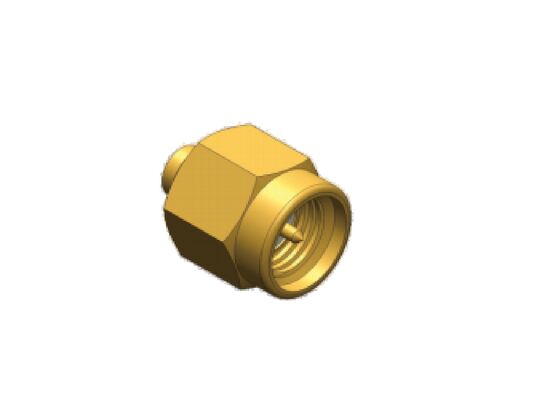

SMA RF Connector 18GHz Male Plug for RG405, .086 , 2#Semi-rigid/flexible Cable with Salt Spray Resistance
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMA RF Connector | Model: | SMA-JB2-14 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Impedance: | 50ohm |
| DWV: | 750V | Insulation Resistance: | ≥5000MΩ |
| Center Conductor: | Copper Alloy With Gold Plating | Outer Conductor: | Copper Alloy With Gold Plating |
| Cable Type: | RG405, .086 , 2#Semi-rigid/flexible Cable | Gender: | Male Plug |
| Insulators: | PTFE | Application: | PCB Application, RF Test Fixture，Chassis，Telecommunication，Phased Array Radar System, Intelligent Systems |
| Highlight: | SMA RF connector 18GHz male plug,SMA connector for RG405 cable,salt spray resistant SMA RF connector |
||
SMA RF Connector 18GHz Male Plug for RG402, .086 , 2#Semi-rigid/flexible Cable with Salt Spray Resistance
Product Description
Engineered with precision miniaturization, SMA RF connectors support a wide frequency range from DC to 18 GHz. Featuring ultra‑low insertion loss and return loss, these connectors maintain excellent signal integrity and stable transmission across high‑frequency systems.
SMA RF connectors compact, lightweight design optimizes valuable board space without compromising electrical or mechanical performance. Combining consistent wideband operation, robust construction, and precision engineering, our SMA RF connectors outperform standard interconnects and provide a dependable solution for mission‑critical, high‑frequency RF systems.
Our SMA RF connector type: cable connector, flange mount connectors, bulkhead connectors, pcb mount connectors.
Technical Data
|
Electrical Characteristics |
|
|
Model No. |
SMA-JB2-14 |
|
Impedance |
50Ω |
|
Frequency Range |
0.3MHz~18GHz |
|
VSWR |
≤1.3 |
|
Dielectric Withstand Voltage |
750 V |
|
Insulation Resistance |
≥ 5000 MΩ |
|
Material & Mechanical Characteristics |
|
|
Center conductor |
Copper Alloy, Gold Plating |
|
Body and other |
Copper Alloy, Gold Plating |
|
Insulation Dielectric |
PTFE |
|
Cable Type |
.086, RG405, 2#Semi-flexible/rigid Cable |
|
Other Index |
96-Hour Neutral Salt Spray Resistance |
Outline Dimension
SMA RF Connector Model: SMA-JB2-14 ( 96-Hour Neutral Salt Spray Resistance )
Applications
- Aerospace
- Aviation
- Navigation
- Radar systems
- Communications
- Test Fixture
- Instruments
- Electronics
Our SMA RF Connectors use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Packing & Shipping
Packaging: Each Copper Alloy SMA RF connector is securely packaged in a sturdy cardboard box with foam padding to prevent transit damage.
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are manufacturer with over 23+ years experience on RF/Microwave Interconnect Components .
Q2: What products can you provide currently?
A: SMA, SSMA, SMP, SMPM, ASMP( bigger than SMP ), CSMP( smaller than SMPM ), N, TNC, TNCA, TMA, 2.92mm, 3.5mm, 2.4mm, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components.
Q3: Is free sample available for SMA RF Connector?
A: Yes, if have stock, free sample is available with freight collected.
Q4: Can your company accept customize?
A: ODM is welcomed. With more than 23+ years experience in ODM, Elite Electronics can assist in design, product development, research & development and integration of your interconnect products.
Q5: What are the Payment Terms ?
A: We can accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T), etc.
Q6: What is the lead time of SMA RF Connector?
A: 5 days for sample orders, 3-4 weeks for mass production orders (based on different quantities, ODM , etc.)
Q7: How will you deliver SMA RF Connector to me?
A: Generally, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly but with the lowest freight. Meanwhile, ship by air and by sea is also available.
Q8: How long do I need to wait before my SMA RF Connector arrive?
A: 5-8 workdays for air transportation, 3-8 workdays for international express.
Q9: How is your SMA RF Connector quality?
A: As the high-quality suppliers of many national high-tech projects, providing excellent products is our way of development. We have a strong quality control team and very strict process to guarantee our quality according to different quality grade standard.
Q10: What is your warranty of SMA RF Connector?
A: Our warranty is 3 months after delivery, Elite Electronic pays high attention to after-sales service.
