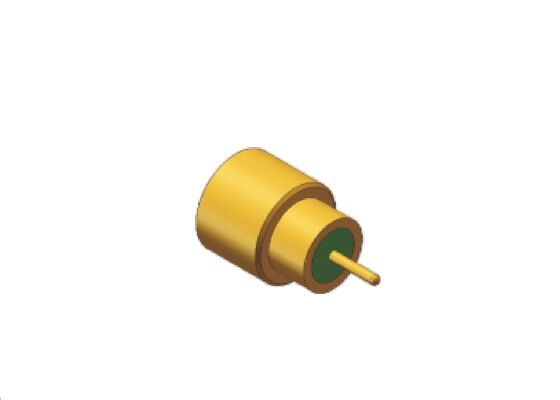

Kovar Alloy Gold Plated Mini SMP SMPM RF Connector Full Detent Male 40GHz 50 Ohm with Glass Sintering for PCB Soldering

Large Image : Kovar Alloy Gold Plated Mini SMP SMPM RF Connector Full Detent Male 40GHz 50 Ohm with Glass Sintering for PCB Soldering Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	Rohs，ISO Certificates
Model Number:	SSMP(M)-JHD34

Payment & Shipping Terms:

Minimum Order Quantity:	In stock
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;10bags/carton
Delivery Time:	6-8weeks for new production
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	SMPM RF Connector	Frequency:	DC~18GHz
Center Contact:	Kovar Aolly， Gold Plated	Shell:	Kovar Aolly， Gold Plated
Dielectric:	Glass	Insulation Resistance:	5000 Ohm
DWV:	500V	Imdepence:	50Ω
Rated Voltage:	170V	Temperature Range:	-55℃~+125℃
Gender:	Male Plug	Leakage Rate:	≦1.01325 X 10-3 Pa.cm3/s
Highlight:	Kovar alloy SMPM RF connector , gold plated SMPM connector 40GHz , SMPM RF connector PCB soldering

Product Description:

Kovar Alloy Gold Plated Mini SMP SMPM RF Connector Male 40GHz 50 Ohm with Glass Sintering for PCB Soldering

SMPM RF connectors are ultra_-miniature push_-on RF coaxial connectors characterized by the small size (smaller than SMP), light weight, and wide operating frequency range. They are suitable for inter board connections and are used in pairs. They offen use like male SMPM male connector+ SMPM Female to Female Adapter+ SMPM male connector. The plug has two interface forms: Full detent and smooth bore, they suitable for modular dense mounting.

Full Detent: Provides maximum retention force, ideal for critical, high-vibration environments.

Smooth Bore: Optimized for high-density arrays where space is at a premium.

Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Smooth Bore.

Blind-Mate Capability

In space-constrained or inaccessible areas where precise alignment of two circuit boards is difficult, the SMPM RF Connector three-piece set allows for a certain degree of radial and axial misalignment, enabling the board-to-board connection to be completed successfully even without perfect alignment.

Stack-Up Tolerance Compensation

Mechanical tolerances are inevitable in multi-board stacking structures. The bullet adapter can compensate for axial misalignment , ensuring reliable signal connections even in the presence of manufacturing and assembly errors.

Maintained High-Frequency Performance

Despite the added transition, the design of the SMPM RF connector three-piece set guarantees signal path integrity. It supports frequencies up to 40GHz, ensuring that signal quality does not degrade significantly during board-to-board transmission.

Outline Dimension of Hermetic Kovar Alloy Gold Plated SMPM RF Connector male with Glass Sintering Model : SSMP(M)-JHD34

Kovar Alloy Gold Plated Mini SMP SMPM RF Connector Full Detent Male 40GHz 50 Ohm with Glass Sintering for PCB Soldering 0

Model No.	L	Interface Form	Note
SSMP(M)-JHD34	1.7mm	Full Detent	Engagement Depth: 1.7mm
SSMP(M)-JHD35	0.98mm	Full Detent	Engagement Depth: 1.7mm
SSMP(M)-JHD47	1.3mm	Full Detent	Engagement Depth: 1.7mm

Outline Dimension of Hermetic Kovar Alloy Gold Plated SMPM RF Coaxial Connector male with Glass Sintering Model : SSMP-JHD86

Kovar Alloy Gold Plated Mini SMP SMPM RF Connector Full Detent Male 40GHz 50 Ohm with Glass Sintering for PCB Soldering 1

Model No.	Interface Form	Note
SSMP(M)-JHD86	Full Detent	Engagement Depth: 1.4mm

Outline Dimension of Hermetic Kovar Alloy Gold Plated SMPM RF Connector male with Glass Sintering Model : SSMP-JHD84

Kovar Alloy Gold Plated Mini SMP SMPM RF Connector Full Detent Male 40GHz 50 Ohm with Glass Sintering for PCB Soldering 2

Model No.	Interface Form	Note
SMP-JHD84	Full Detent	Engagement Depth: 1.7mm

Outline Dimension of Hermetic Kovar Alloy Gold Plated SMPM RF Connector male with Glass Sintering Model : SSMP-JHD77

Kovar Alloy Gold Plated Mini SMP SMPM RF Connector Full Detent Male 40GHz 50 Ohm with Glass Sintering for PCB Soldering 3

Model No.	Interface Form	Note
SMP-JHD77	Full Detent	Engagement Depth: 1.95mm

Kovar Alloy Gold Plated Mini SMP SMPM RF Connector Full Detent Male 40GHz 50 Ohm with Glass Sintering for PCB Soldering 4

Model No.	Interface Form	Note
SMP-JHD85	Full Detent	Engagement Depth: 1.7mm

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF Connectors, Adapters, Cable Assemblies, Microwave Components supply solution to the fields of commercial aerospace, aviation, navigation, radar, satcom, telecom, telemetry system, high-end electronics industry over 23 years. Elite Electronics has 210 engineers, 4 test laboratories, more than 800 sets of high-precision CNC machining equipment, inspection and testing equipment, 16 assembly production lines, over 800 staff.
Kovar Alloy Gold Plated Mini SMP SMPM RF Connector Full Detent Male 40GHz 50 Ohm with Glass Sintering for PCB Soldering 5

Packing & Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm

Shipping:

Shipping Time: 5-10 working days for stocked SMPM RF Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.

Kovar Alloy Gold Plated Mini SMP SMPM RF Connector Full Detent Male 40GHz 50 Ohm with Glass Sintering for PCB Soldering 6
