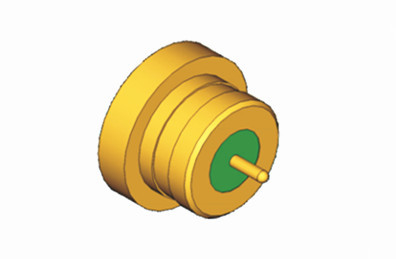

| Product Mame: | SSMP Hermetically Sealed Male Connector | Gender: | Plug |
|---|---|---|---|
| Boday Material: | Kovar 4j29 | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~40GHz |
| Other Name: | SMPM Connector, Mini SMP Connector | Hermecity: | <1.01325 X 10E-08 Std.cc/s |
| High Light: | SSMP Male RF Connector,SMPM Hermetic Seal Male RF Connector,SMPM Adapter Microstrip Plug |
||
The Mini SMP connector is also known as the SMPM or SSMP connector. It is a miniature push-on RF coaxial connector that features small size (in comparison to SMP), lightweight, wide operating bandwidth, and more. This connector is suitable for board-to-board connections, modular dense mounting, and has two interface forms with full detent and smooth bore.
Features:
The SMPM male connector is available in both full-detent and smooth bore designs to cater to different preferences for separation forces.
With a size that is 35% smaller than the standard SMP design, the SMPM connector offers a more compact solution.
Widely used in telecommunication systems, the SMPM (SSMP) connector stands out due to its small size and broad operating bandwidth.
As a sub-miniature, push-on style micro-interface connector, the SMPM (SSMP) provides a reliable connection option.
This type of RF connector features a wide frequency range of up to 50 GHz, making it suitable for various applications.
Offered in both cable mount versions for flexible and semi-rigid cable materials, the SMPM (SSMP) connector provides flexibility in installation options.
Application:
* Aerospace
* Board-to-board interconnect
* Broadband
* Antennas
* Instrumentation
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | ≤5mΩ | |||
| Center conductor | ≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
Material & Mechanical Characteristics:
Center Conductor:
Male: Sn-P Bronze/Kovar, Gold plated
Female: Beryllium bronze, Gold plated
Elastic Contact: Beryllium bronze Gold plated
Body and other Metal Parts: Brass/Kovar with Gold plated
Insulators: Glass sintering/PTFE/PEI
Related SMP male connector
1.
| Model No. | Description | Note |
| SSMP(M)-JHD12-JH | SMPM Mini SMP male full limited hermetically sealed connector with bonding surface | Interface deepth 1.2mm |
2.
| Model No. | Description | Note |
| SSMP(M)-JHD1 | SMPM Mini SMP male full limited hermetically sealed connector with bonding surface | Interface deepth 1.3mm |
| SSMP(M)-JHD1-S | SMPM Mini SMP male smooth bore hermetically sealed connector |
3.
| Model No. | Description | Note |
| SSMP(M)-JHD42-S | SMPM Mini SMP male smooth bore hermetically sealed connector | Interface deepth 1.4mm |
4.

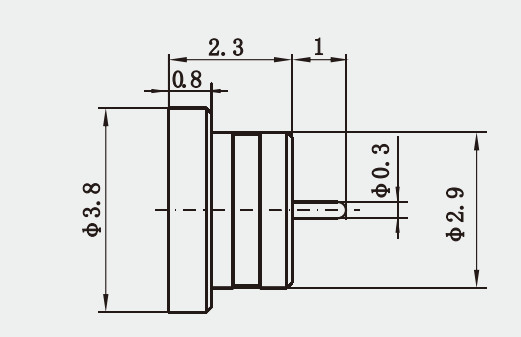

| Model No. | L | Description | Note |
| SSMP(M)-JHD13 | 2.3 | SMPM Mini SMP male full limited hermetically sealed connector | Interface deepth 1.7mm |
| SSMP(M)-JHD15 | 1.85 | SMPM Mini SMP male full limited hermetically sealed connector | |
| SSMP(M)-JHD24-S | 0.9 | SSMP male smooth bore hermetically sealed connector | |
| SSMP(M)-JHD32 | 6 | SMPM Mini SMP male full limited hermetically sealed connector | |
| SSMP(M)-JHD43 | 1.7 | SMPM Mini SMP male full limited hermetically sealed connector | |
| SSMP(M)-JHD88-JH | 1 | SMPM Mini SMP male full limited hermetically sealed connector with bonding surface |
5.
| Model No. | Description | Note |
| SSMP(M)-JHD36 | SMPM Mini SMP male full limited hermetically sealed connector | Interface deepth 2.11mm |
Certificate:
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
