Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated

Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated
Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated

Large Image :  Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SSMP-KK240
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Product Name: SSMP, SMPM, Mini SMP Connector Gender: Jack To Jack
Material: Brass Plating: Gold Plated
Impedance: 50Ω Frequency Range: DC~50GHz
Body Style: Straight Model: SSMP-KK240
High Light:

Female To Female SSMP RF Connector

,

Mini SMP SSMP RF Connector

,

Gold Plated SSMP RF Connector

Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated

Introduction

SSMP is a kind of miniature push in RF coaxial connector, which has the characteristics of small size (compared with SMP), light weight, wide working range, etc. It is applicable to the coupling use of board to board connectors and the occasion of intensive modular installation. The plug has two types of interface: full thread and non threaded hole.

The speciications below are general specifications for all SSMP  connectors. Specific specifications for VSWR, Insertion loss, and RF leakage for each connector is available from the factory upon request. Specifications in the following table are recommanded for any procurement documents or drawings.


Specification:
Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ, Sealing≤30mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5



Material & Mechanical Characteristics:

Central contact.

Males. Sn-P bronze/Kovar, gold plated

Parent body: beryllium bronze, gold plated

Elastic contact: gold plated beryllium bronze

Body and other metal parts. Brass/Kovar Gold Plated

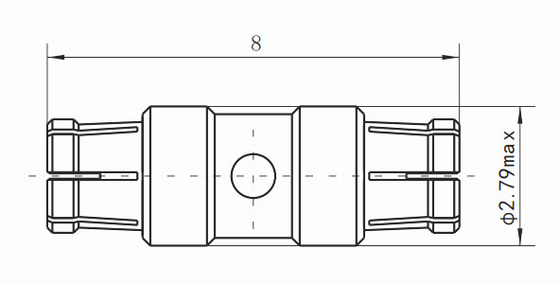

Product Drawing:

Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated 0



Features:

-Low VSWR through 40 GHz(SMP)/50 GHz(SMPM)
-Female cable connector options available for all flexible cable types .086” diameter and smaller
-All standard SMP/SMPM male connector options available upon request
-Low insertion/extraction forces, compared to standard full detent SMP and SMPM, mean less torque on board mount connector solder joints       during mating and demating
-Spring loaded positive mating feature allows excellent electrical performance even in extreme vibration environments
-Low mating forces allow for more mating cycles without failure compared to full detent SMP and SMPM​



Application:



Bench-top testing (PCB mount, cable connectors and adapters)
High vibration environments
Applications requiring a high number of mating cycles
High quality and Commercial options available



Related products:

Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated 1

SSMP Female to Female RF Adapter         Length=15.55mm   Diameter=φ2.79 max


Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated 2

SSMP Female to Female RF Adapter Length=4.55mm Diameter=φ2.79 max



Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated 3

SSMP Female to Female RF Adapter Length=23.1mm Diameter=φ3.05

Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated 4

SSMP Female to Female RF Adapter Length=8.6mm Diameter=φ2.79 max



Factory& Production Line:

Xi'an Elite Electronic is a product and solution provider, the company provides high quality, high performance, cable assembly/connector products. Xi'an Elite Electronic engages in R&D, for telecom and electronics products with a focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors, and high-end test/calibration products. The company has the capacity of product design, engineering service, low-cost production/sourcing, assembly, and testing.

Mini SMP Female to Female SSMP RF Connector Adapter Gold Plated 5



NOTE:

We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
