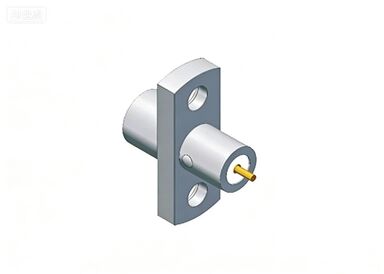

Stainless Steel SMP RF Connector Male Flange Mount Limited Detent 18GHz 50 Ohm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP RF Connector | Frequency: | DC~18GHz |
|---|---|---|---|
| Center Contact: | Copper Alloy， Gold Plated | Shell: | Stainless Steel， Passivation |
| Insulation Resistance: | 5000 Ohm | DWV: | 500V |
| Imdepence: | 50Ω | Rated Voltage: | 170V |
| Temperature Range: | -55℃~+125℃ | Gender: | Male Plug |
| Dielectric: | PTFE | Mounting: | 2-hole Flange Mount |
| Samples: | Available，2 Pcs In Stock | Interface: | Limited Detent |
| Pin OD: | 0.3mm, 0.45mm, 0.5mm, 0.7mm, 0.9mm, 1.3mm Available | ||
| Highlight: | Stainless Steel SMP RF Connector,SMP RF Connector Male Flange Mount,18GHz 50 Ohm SMP Connector |
||
Product Description:
Stainless Steel SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 18GHz 50 Ohm
Elite Electronics' SMP RF coaxial adapters empower you to build perfectly customized high-frequency systems. Choose from a comprehensive range of configurations including straight and right-angle designs, compatible with cable assemblies, PCB and flange mounting, and available with environmental sealing for waterproof operations.
Fine-tune your mechanical interface with our tiered inner conductor lineup. Select Full Detent for maximum connection stability, Limited Detent for a balance of retention and ease of use, or Smooth Bore for ultra-fast, low-force mating, perfectly aligning with your lifecycle and density requirements.
Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Limited Detent > Smooth Bore.
Outline Dimension of Stainless Steel SMP RF Connector male flange mount connector Model : SMP-JFD108G
| Model No. | Interface Form | Note |
| SMP-JFD108G | Limited Detent | Engagement Depth: 2.79mm |
Outline Dimension of Stainless Steel SMP RF Connector Plug 2 Hole Flange Mount Connector Model : SMP-JFD127G
| Model No. | Interface Form | Note |
| SMP-JFD127G | Limited Detent | Engagement Depth: 2.79mm |
Outline Dimension of Stainless Steel SMP RF Connector Plug 2 Hole Flange Mount Connector Model : SMP-JFD276G
| Model No. | Interface Form | Note |
| SMP-JFD276G | Limited Detent | Engagement Depth: 2.79mm |
Note: we also have the pin OD =0.3, 0.45, 0.5, 0.7, 0.9, 1.3, please feel free to contact us if you need different size pins.
Applications:
Xi'an Elite Electronics is a Leading Manufacturer of RF Connectors, Adapters, Cable Assemblies, Microwave Components supply solution to the fields of commercial aerospace, aviation, navigation, radar, satcom, telecom, telemetry system, high-end electronics industry over 23 years. Elite Electronics has 210 engineers, 4 test laboratories, more than 800 sets of high-precision CNC machining equipment, inspection and testing equipment, 16 assembly production lines, over 800 staff.
Packing & Shipping:
Packaging:
Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm
Shipping:
Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.
