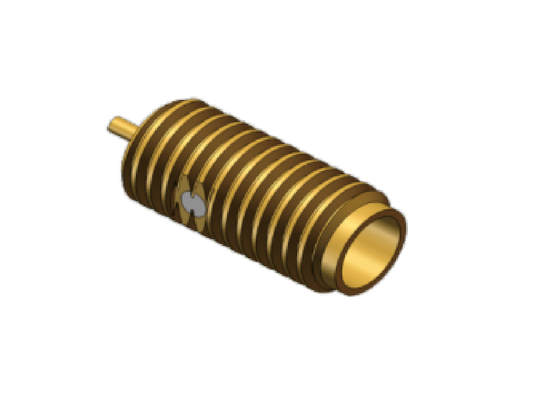

50ohm SSMA RF Connector Mini SMA Female Jack 18GHz for Bulkhead Mount with Screw 10-36UNS-2
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SSMA RF Connector | Impedance: | 50 Ohm |
|---|---|---|---|
| Dwv: | 500V | Frequency Range: | DC To 18GHz |
| Insulator: | PTFE | Center Contact: | Copper Alloy, Gold Plating |
| Housing: | Copper Alloy, Gold Plating | Mount: | Bulkhead Mount |
| Screw: | 10-36UNS-2 | Temperature: | -55℃～+125℃ |
| Application: | Aviation, Navigation, Satcom, Radar Systems, Communications, Microwave Systems | Location: | Xian,China |
| Highlight: | 50ohm SSMA RF connector bulkhead mount,SSMA female jack 18GHz,mini SMA connector with screw |
||
Product Description:
SSMA RF connectors are a specialized type of miniature coaxial RF connector engineered for precision in high-frequency applications. Distinguished by their compact form factor and reliable performance, these connectors are the preferred choice for modern telecommunications and aerospace engineering.
Key Design Features and Specifications
●
Compact & Space-Saving Design: SSMA connectors feature a reduced size compared to standard SMA connectors. This miniature design is critical for high-density circuit boards and space-constrained applications where every millimeter counts.
●
Extended Frequency Range: Capable of supporting frequencies up to 18 GHz, SSMA connectors ensure minimal signal loss, making them ideal for high-frequency signal transmission and broadband systems.
●
Secure Threaded Connection: Utilizing a precision threaded coupling mechanism, these connectors provide a stable, vibration-resistant, and reliable electrical connection, essential for sensitive equipment.
Female Bulkhead Mount SSMA RF Connector Model No.: SSMA-KYD6
Other bulkhead models:
Features:
- Product Name: SSMA RF Connector
- Location: Xian, China
- Screw: 10-36UNS-2
- Center Conductor: Copper Alloy with Gold Plating
- Insulation Resistance: ≥5000MΩ
- Impedance: 50ohm
- SSMA flange mount connector for reliable and secure connections
- Mini SMA female flange connector design for easy installation
Technical Parameters:
| Dwv | 500V |
| Impedance | 50ohm |
| Gender | Female |
| Center Conductor | Copper Alloy, Gold Plating |
| Insulation Resistance | ≥5000MΩ |
| Housing | Copper Alloy, Gold Plating |
| Application | Aviation, Navigation, Satcom, Radar, Communications, Microwave Systems |
| Location | Xian, China |
| Insulator | PTFE |
| Screw | 10-36UNS-2 |
Applications:
Typical scenarios for using the SSMA RF connector include high-frequency signal transmission in radar systems, wireless communication devices, test and measurement equipment, and satellite communication terminals. The connector ensures stable, high-frequency performance with excellent mechanical and environmental resilience.
Customization:
Elite Electronics offers comprehensive product customization services for the SMA, SSMA, SMP, SMPM, BNC, N, TNC, TNCA, TMA, BMA, MCX, 2.92mm, 2.4mm, 1.85mm, 3.5mm, 1.0mm, 0.8mm... Our connectors are manufactured in Xi'an City, China, and come with ISO9001 and ISO14001 certifications, ensuring high quality and environmental standards.
Our minimum order quantity is 200 pieces for costomization.
Packing and Shipping:
Packaging & Shipping for SSMA RF Connector
The SSMA RF Connector is carefully packaged to ensure maximum protection during transit.
Dual-Layer Defense:
We combine the electrical safety of advanced anti-static shielding with the physical resilience of high-density foam inserts. This dual approach guarantees protection against the most common causes of in-transit failure.
