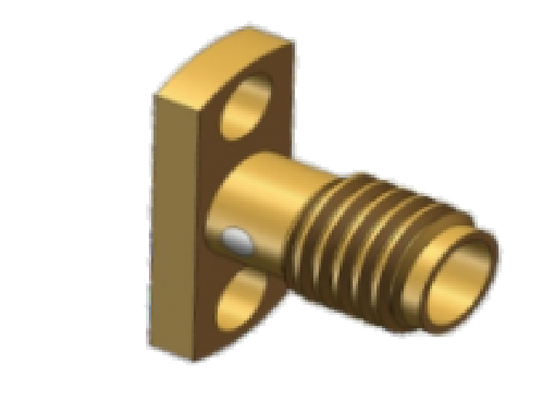

Gold Plated Copper Alloy SSMA Jack 2 Holes Flange Mount up to 18GHz Using for Microwave Communication Systems
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SSMA Female Flange Mount Microstrip Connector | Model: | SSMA-KFD131 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Housing: | Stainless Steel, Passivation |
| Contacts: | Copper Alloy, Gold Palting | Insulator: | PTFE |
| Insulation Resistance: | >5000MΩ | DWV: | 750V |
| Impendence: | 50Ω | Temperature: | -55℃～+125℃ |
| In Stock: | Samples In Stock | ||
| Highlight: | Gold plated SSMA RF connector,Copper alloy flange mount connector,18GHz microwave communication connector |
||
Product Description:
|
Electrical Characteristics
|
||
|
Impedance
|
50Ω
|
|
|
Frequency Range
|
DC~18GHz
|
|
|
Rated Voltage
|
250VRMS
|
|
|
Dielectrics Voltage-resistance
|
750VRMS
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
Outer conductor
|
Normal≤2.5mΩ
|
|
Center conductor
|
Normal≤4mΩ
|
|
|
VSWR
|
≤1.3
|
|
| VSWR | DC~18GHz | 18GHz~26.5GHz | 26.5~40GHz | |
| Straight | ≤1.3 | ≤1.35 | ≤1.4 | |
| Right Angle | ≤1.3 | |||
| Adapter | ≤1.3 | ≤1.35 | ≤1.4 | |
| Others | ≤1.3 |
The outline demension of Copper Alloy Gold Plating SSMA Female Flange Mount Connectors Model: SSMA-KFD131
Applications:
Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.
Customization:
Product Customization Services for SSMP Female Flange Mount according drawing:
Brand Name: ELT
MOQ: 200 pcs
Price: Depending on the quantity
Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.
We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, TMA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler...
