SMA RF Connector 18GHz Female Jack Edge Mount for PCB with Pin Diameter 0.3mm, 0.8mm, 1.3mm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMA RF Connector | Model: | SMA-KHD12 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Impedance: | 50ohm |
| DWV: | 750V | Insulation Resistance: | ≥5000MΩ |
| Pin Diameter: | 0.3mm, 0.8mm, 1.3mm.... | Center Conductor: | Copper Alloy With Gold Plating |
| Outer Conductor: | Copper Alloy With Gold Plating | Mount Method: | Edge Mount |
| Gender: | Jack | Insulators: | PTFE |
| Application: | PCB Application, RF Test Fixture，Chassis，Telecommunication，Phased Array Radar System, Intelligent Systems | ||
| Highlight: | SMA RF connector edge mount PCB,SMA female jack 18GHz connector,SMA connector with pin diameter options |
||

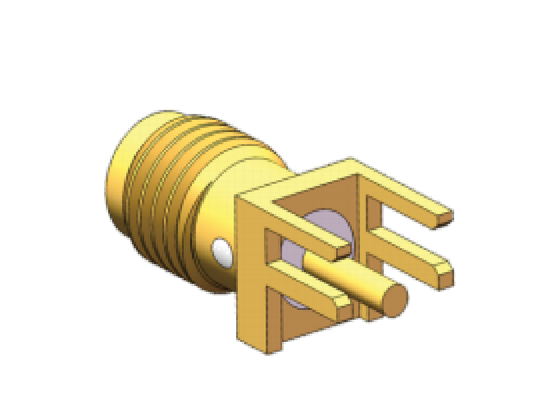

SMA RF Connector 18GHz Female Jack Edge Mount for PCB with Pin Diameter 0.3mm, 0.8mm, 1.3mm
Product Description
Our high-reliability SMA RF connectors deliver superior performance for demanding RF and microwave applications. They feature a precision miniaturized design supporting DC‑18 GHz, with ultra‑low insertion loss and return loss to preserve signal integrity.
Engineered with a robust threaded coupling, they provide excellent vibration resistance and stability in harsh environments, ideal for aerospace, automotive, high‑density PCBs, and compact microwave modules.
Their compact, lightweight form factor saves critical board space while ensuring consistent wideband performance. Built for durability and precision, our SMA connectors outperform conventional solutions for mission‑critical, high‑frequency systems.
Technical Data
Outline Dimension: Copper Alloy Gold Plating Jack PCB Edge Mount SMA RF Connector up to 18GHz Pin Diameter 0.3mm
Other SMA RF Connector Model: Accept Pin Diameter 0.3mm, Hole Depth 2mm
