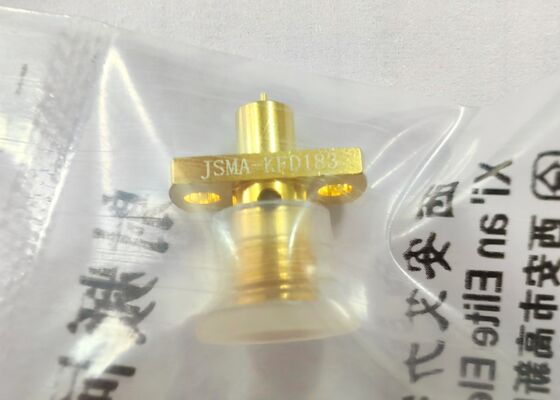

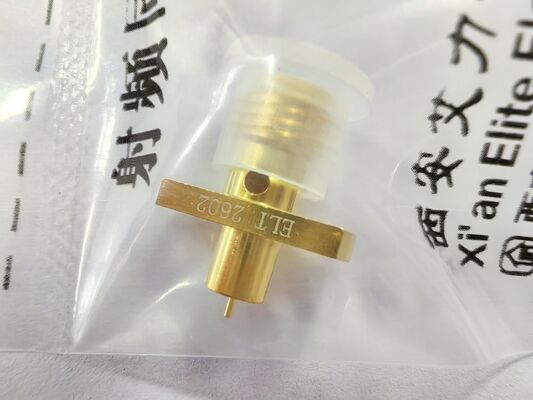

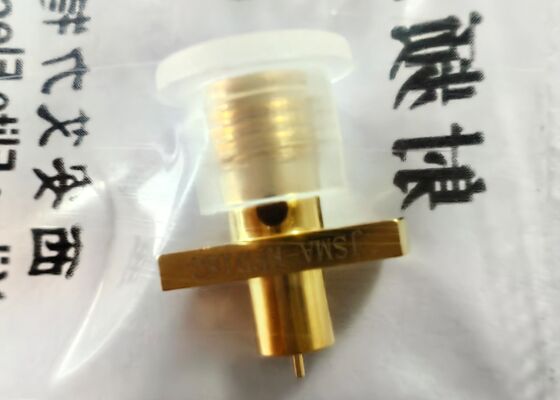

18GHz two Holes Flange Mount Jack SMA RF Connector for Phased Array Radar System
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMA RF Connector | Model: | SMA-KFD183 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Impedance: | 50ohm |
| DWV: | 750V | Insulation Resistance: | ≥5000MΩ |
| Center Conductor: | Copper Alloy With Gold Plating | Outer Conductor: | Copper Alloy With Gold Plating |
| Mount Method: | 2 Holes Flange Mount | Gender: | Jack |
| Insulators: | PTFE | Application: | RF Test Fixture，Chassis，Telecommunication，Phased Array Radar System |
| Highlight: | 18GHz SMA RF connector,flange mount SMA connector,phased array radar RF connector |
||
Copper Alloy 50ohm 18GHz 2 Holes Flange Mount Jack SMA RF Connector for Phased Array Radar System
Product Description
Unlike conventional RF interconnects, our SMA RF connector stands out as a high-reliability, miniaturized solution tailored exclusively for high-stress RF and microwave applications. What sets it apart is its exceptionally broad operating frequency span—standard models cover DC to 18 GHz, while our premium, custom-engineered variants push the limit to 26.5 GHz, addressing the unmet needs of high-frequency signal transmission across diverse industries.
Distinguished by its precision-engineered structure, this SMA RF connector uniquely minimizes both signal reflection and transmission loss, safeguarding superior signal integrity even in the most critical high-frequency RF, microwave, and aerospace use cases. Its robust design ensures consistent performance in extreme harsh environments, setting it apart as the preferred choice for engineers and manufacturers seeking reliability beyond standard connectors.
● Ultra-Compact, Space-Saving High-Density Design (Beyond Standard Miniaturization)
What makes our SMA connector distinct from traditional alternatives (such as N-type) is its optimized miniaturized RF interconnect design—not just smaller, but engineered to save maximum valuable board and equipment space. Its slim form factor and lightweight build make it the only choice for high-density PCBs, compact microwave modules, portable test equipment, and space-constrained aerospace systems—directly addressing the core challenge of modern electronic miniaturization.
● Superior Wideband RF Performance (With Unmatched Consistency)
Unlike generic broadband connectors, our SMA RF connector is purpose-built for stable, uninterrupted broadband performance, supporting consistent operation from DC to 18 GHz (with high-precision variants reaching 26.5 GHz). Its unique wideband capability delivers ultra-low insertion loss and return loss, maintaining uncompromised signal quality across the entire RF and microwave spectrum—critical for high-speed, high-frequency applications where standard connectors fail to deliver consistency.
● Secure, Vibration-Resistant Connection (Engineered for Extreme Durability)
Setting itself apart from bayonet-style connectors, our SMA RF connector features a rugged, reinforced threaded coupling interface that delivers exceptional mechanical robustness and reliability. This exclusive design offers industry-leading vibration resistance, ensuring long-term stability and preventing accidental disconnection—even in the harshest operating environments, from industrial settings to automotive and aerospace applications.
Our SMA RF connectors combine exclusive precision engineering, unmatched durability, and space-optimized design to solve the evolving challenges of RF and microwave industries. Unlike standard alternatives, we tailor each connector to exceed expectations—trust [Your Company Name] for SMA RF connectors that deliver consistent, reliable results in the most demanding scenarios.
Technical Data
Outline Dimension: Copper Alloy Gold Plating Jack two Holes Flange Mount SMA RF Connector up to 18GHz
Applications
- Aerospace
- Aviation
- Navigation
- Radar systems
- Communications
- Test Fixture
- Electronics
Our SMA RF Connectors use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Packing & Shipping
Packaging: Each Copper Alloy SMA RF Connector 4 hole flange connector is securely packaged in a sturdy cardboard box with foam padding to prevent transit damage.
