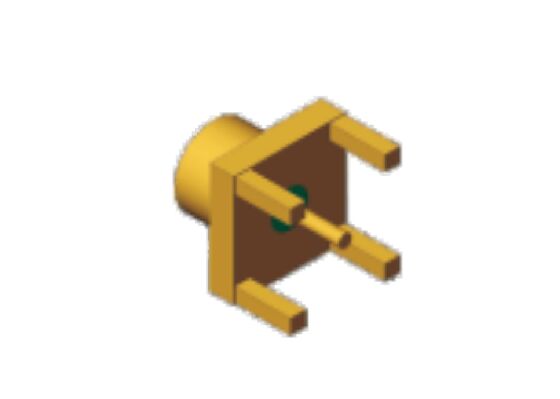

Hermetic SMP Male RF Coax Connector Through Hole PCB Mount Designed for Board to Board Blind Mate
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP Coax Connector | Impendance: | 50 Ohm |
|---|---|---|---|
| Frequency Range: | DC~40GHz | Model No: | SMP(M)-JHD41 |
| DWV: | 500VRMS* | Insulation Resistance: | >5000M Ohm |
| Gender: | Male | Center Contact: | Kovar, Gold Plating |
| Housing Materials: | Kovar, Gold Plating | Interface Form: | Limited Detent, Smooth Bore |
| Mount: | Through Hole PCB Mount | Leakage Rate: | ≦1.01325 X 10-3 Pa.cm3/s |
| Application: | Satcom，Telemetry, Remote Control，Radar, 5G Base Station | ||
| Highlight: | SMP RF connector through hole PCB mount,hermetic SMP male coax connector,board to board blind mate RF connector |
||
Product Description:
SMP connectors are the ideal choice for reliable interconnection in compact, high-performance electronic systems. Boasting excellent RF performance and mechanical robustness, they are suitable for a variety of harsh application scenarios. Adopting a push-on interface design for easy installation, they are exclusively engineered for space-constrained board-to-board (PCB) and blind-mate connections, perfectly meeting the interconnection needs of miniaturized equipment.
These connectors feature outstanding core performance: they deliver ultra-wideband capability with an operating frequency up to 18 GHz, and even 40 GHz for high-end models, ensuring signal integrity and ultra-low loss in telemetry transmission; their compact, high-density structure supports ultra-high mounting density, making them the top choice for miniaturized radar and telemetry systems; equipped with smooth bore, limited detent and full detent interfaces, they offer strong adaptability for frequent mating cycles in test environments and vibration resistance in industrial applications. In addition, the rugged construction withstands extreme temperature variations, intense vibration, and severe electromagnetic and physical conditions for stable performance, and supports cable, flange, through-hole PCB and other mounting methods, flexibly adapting to different PCB layout requirements.
Currently, SMP connectors have become a highly efficient and reliable interconnection solution for modern high-demanding electronic systems, and are widely used in aerospace telemetry, phased array radar, high-end test and measurement equipment and other fields.
Technical Parameters:
| Center Contact | Kovar, Gold Plating |
| Impedance | 50 Ohm |
| Gender | Male |
| Insulators | Glass |
| Operating Temperature | -55°C To +165°C |
| Housing Materials | Kovar, Gold Plating |
| Frequency Range | DC ~ 40 GHz |
| Interface Form | Limited Detent, Smooth Bore |
| DWV | 500 VRMS* |
| Application | Aerospace, Aviation, Navigation, Satcom, Telemetry, Remote Control, Radar, 5G Base Station |
Note3: Engagement Depth 2.79 Note4: Hermetic
Applications:
This SMP RF Coaxial Connector is suitable for aerospace telemetry, satellite communication, radar systems, or 5G infrastructure, the Elite Electronics SMP RF Connector provides reliable, high-performance connectivity solutions. Its supply ability is flexible to meet various demands, making it a preferred choice for engineers and system integrators seeking quality SMP connectors with proven performance and global certification standards.
Customization:
Elite Electronics offers customized Product Customization Services for the SMP RF Connector series. Our High Frequency SMP Connector products are certified with Rohs, ISO 9001, and 14001, ensuring top quality and environmental standards compliance.
Interface forms available include Full Detent, Limited Detent, and Smooth Bore, providing versatile options to fit various connection needs. Choose Elite Electronics’s High Frequency SMP Connector customization services for reliable, high-performance RF connections tailored to your specifications.
MOQ for Customization: 200pieces
Packing & Shipping:
Our SMP RF Connectors are carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static material and placed in a sturdy, cushioned box to prevent any damage from shocks or vibrations.
The packaging is clearly labeled with product information, including part numbers and specifications, to facilitate easy identification and inventory management.
FAQ:
Q1: What is the brand and model number of the SMP RF Connector?
A1: The SMP RF Connector is branded ELT and the model number starts with SMP-***
Q2: Where is the SMP RF Connector manufactured?
A2: The SMP RF Connector is manufactured in Xi'an, China.
Q3: What certifications does the SMP RF Connector have?
A3: The SMP RF Connector is certified with Rohs, ISO 9001, and ISO 14001.
Q4: What is the minimum order quantity and packaging details for this product?
A4: The minimum order quantity is 50 pieces, but there is no MOQ restriction if the product is in stock. Packaging is 1 piece per plastic bag and 10 bags per carton.
Q5: What are the payment terms and delivery time for the SMP RF Connector?
A5: Payment can be made via T/T or LC, and the delivery time for stocked quantity is 5-7 working days.
