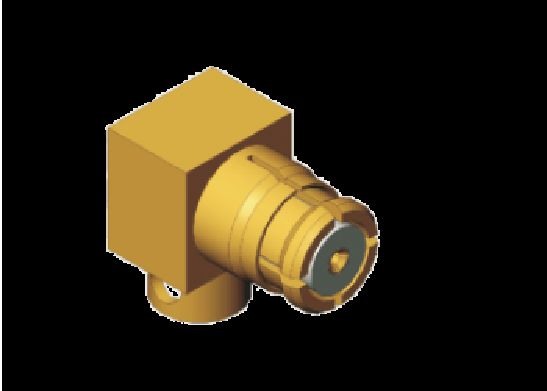

Right Angle SMP Female Cable Connector Straight Jack SMP Cable Frequency Up To 18GHz

Large Image : Right Angle SMP Female Cable Connector Straight Jack SMP Cable Frequency Up To 18GHz Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	ISO Certificates
Model Number:	SMP-KW506

Payment & Shipping Terms:

Minimum Order Quantity:	In stock as requirement
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;10 pcs/larger platic bag；100pcs/carton
Delivery Time:	5-10 working days after payment
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	SMP Right Angle Female Connector	Model:	SMP-KW506
Frequency Range:	0.3MHz-18GHz	Housing:	Copper Alloy，Gold Plating
Contacts:	Copper Alloy, Gold Palting	Insulator:	PTFE
Insulation Resistance:	>5000MΩ	DWV:	500V
Impendence:	50Ω	Temperature:	-55℃～+125℃
In Stock:	>500pcs
Highlight:	Right Angle SMP female connector , SMP cable connector 18GHz , Straight jack SMP RF connector

Product Description:

The SMP connector is a push-on subminiature RF coaxial connector designed for high-frequency applications up to 40 GHz. Renowned for its compact size and reliable performance, it is ideal for board-to-board connections in various electronic devices, systems, communications, satcom (satellite communication), radar, and other related fields. It saves significant mounting space, enabling high-density board connections. The male plug is available in three configurations: full detent, limited detent (also referred to as semi-detent or half-detent), and smooth bore (including the catcher's mitt type).​

Based on specific application requirements, users can select the male plug with the appropriate configuration. When frequency interruption is not a concern, the full detent version is recommended. It offers the maximum connection retention force, as well as superior vibration and impact resistance, making it commonly used for cable connections.​

For applications requiring multiple mating cycles, the limited detent (also called semi-detent or half-detent) is suitable. Derived from the smooth bore structure, it provides medium retention force and is widely utilized in PCB assemblies and blind-mating connections.​

When assembling a large number of SMP board-to-board connectors, the smooth bore configuration is preferred. It features equal engagement and disengagement forces, while accommodating axial and radial misalignment, making it a common choice for blind-mating applications.

Electrical Characteristics
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS
Dielectrics Voltage-resistance	500VRMS
Insulation Resistance	≥5000MΩ
Contact Resistance	Outer conductor	Normal≤2.5mΩ
	Center conductor	Normal≤6mΩ
VSWR	≤1.3

VSWR		DC~18GHz	18GHz~26.5GHz	26.5~40GHz
	Straight	≤1.25	≤1.3	≤1.4
	Right Angle	≤1.3
	Adapter	≤1.25	≤1.3	≤1.4
	Others	≤1.3

The outline demension of SMP Jack Mating Cable CXN3506, Model: SMP-KW506 Up to 18GHz

Right Angle SMP Female Cable Connector Straight Jack SMP Cable Frequency Up To 18GHz 0

SMP Cable Assemblies for your reference:

Cable Model:CXN 3506

Cable OD: 2.3mm

Cable Color : Grey

Frequency:up to 18GHz

We also have straight SMP Cable, SMP Model:SMP-K506 Up to 18GHz

Cable Model: CXN 3506

Cable OD: 2.3mm

Cable Color: Grey

More products, please contact us freely for the SMP Cable Connectors catalog sales3@xa-elite.com.cn

Applications:

Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.

Right Angle SMP Female Cable Connector Straight Jack SMP Cable Frequency Up To 18GHz 3

Customization:

Product Customization Services for Different Length SMP Connectors are available:

Brand Name: ELT

MOQ: 200 pcs

Price: Depending on the quantity

Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.

We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, TMA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler.

Packing and Shipping:

Packaging for SMP Straight Connectors:

1 Piece/ small plastic bag

10 Pieces/ larger plastic bag

100 Pieces/ carton box

The SMP Straight Connectors comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.

Right Angle SMP Female Cable Connector Straight Jack SMP Cable Frequency Up To 18GHz 4

For shipping, the SMP Connectors is placed in caron. We will supply the tracking No after shipping.
