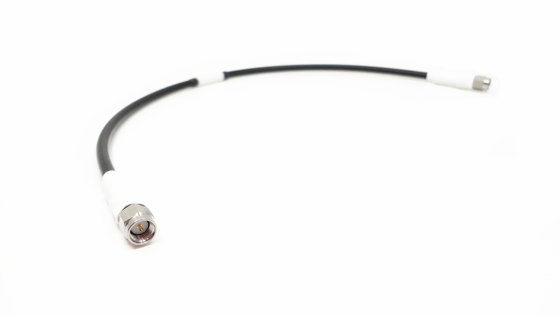

SMA male plug to SMA male plug RF Coaxial Flexible Cable Assembly frequency up to 18 GHz and Customize the cable length
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMA Male To SMA Male Cable Assemblies | Center Contact Of Connector: | Copper Alloy， Gold Plated |
|---|---|---|---|
| Shell Of Connector: | Stainless Steel, Passivation | Imdepence: | 50 Ohm |
| Rated Voltage: | 500V | Insulation Resistance: | 5000Ohm |
| Frequency: | DC~18GHz | Insulation Dielectric: | PTFE |
| Temperature Range: | -55℃~+125℃ | Cable: | MF503A Or CXN3449 |
Product Description:
SMA RF Coaxial Connector
The SMA RF coaxial connector is a compact, high-frequency connector known for its small size, wide frequency band, superior mechanical and electrical performance, and high reliability. Developed by Elite Electronic, this series of high-performance connectors can operate up to 18GHz. It is the most widely used RF coaxial connector, commonly employed in microwave communication, microwave measurement equipment, and various other fields.
Elite Electronic Hot Selling RF Cable Assemblies
SMA series /SSMA series /K (2.92mm) series/ SMP series /SMPM series/ASMP series/CSMP (SMPS) series/ N series /TNC series/TNCA series/TMA connectors.
The above connectors we all have cable connectors mating the cable frequency from 3GHz ~ 40GHz. The calbe length we can arrange the customization. The MOQ: 100pcs.
Product Details of SMA Male to SMA Male RF Coaxial Cable Assembly with Length 300mm:
| Technical | Materials & Finish | ||
| Impedance | / | Center Conductor of Connector | Copper Alloy, Gold Plating |
| DWV | 1000V | Outer Conductor of Connector | Stainless Steel, Passivation |
| Insulation Resistance | ≥5000MΩ | Mating Cable | MF503A |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
| Other Index | Frequency Range: 0.3MHz~18GHz | ||
Outline Dimension of Stainless Steel SMA Male Connectors:
Outline Dimension of SMA male plug To SMA male plug RF Coaxial Cable Assembly :
Applications:
Elite Electronic cable assemblies are widely used in the fields of aviation, navagation, aerospace, satcom, radar, antenna, microwave communication & digital communication, electronic, measurement fields.
Packing and Shipping:
Packaging:
The SMA male to SMA male calbe assemblies are carefully packaged in a carton to ensure safe transportation. The cable is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.
Shipping:
We offer fast and reliable shipping for the both end sma cable assemblies. After shipping, you will receive a tracking No of your shipment.
